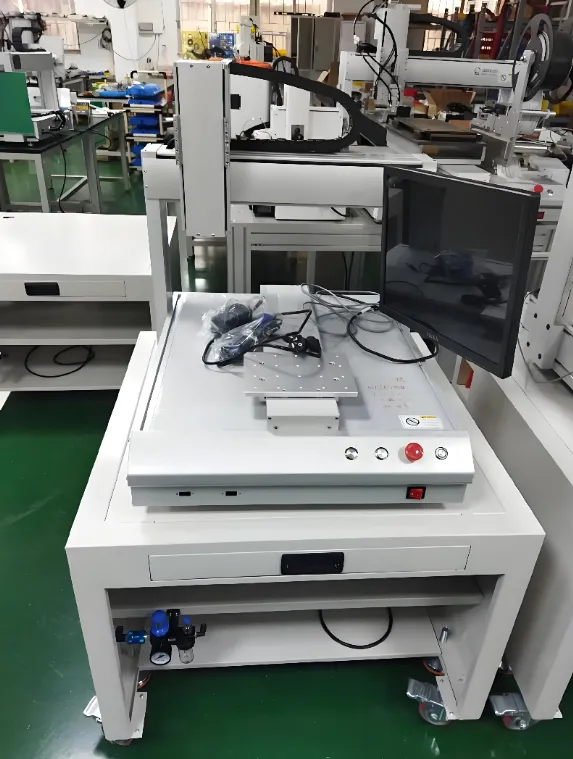

RJ500N Contact Dispensing System

By RangJin

Jul 06, 2026

RJ500N Contact 5-Axis Linkage Dispensing System is applicable to processes such as dispensing on pole screens and inner walls of round holes. Equipped with a 5-axis linkage control system and a high-performance motion control unit, it supports various standard curve interpolations, arbitrary axis linear interpolation, spatial circular interpolation, spatial spiral interpolation, spatial elliptical interpolation, spatial involute interpolation, spatial conical and spiral interpolation, spatial spline curve interpolation, and more. It can be used for sealing and reinforcing circular and special-shaped products. Compatible with multiple types of glues, it boasts strong process adaptability and features high precision, high speed and accurate dispensing.

Product Features
Powerful Motion Capability for 3D Dispensing Trajectories

When positioning special-shaped, circular and curved workpieces, the CCD captures the outer contour of the products, automatically calculates the center position of the products, calibrates compensation values for each motion axis, and then drives the dispensing control system to perform automatic dispensing. The conversion of 3D trajectories is simple and intelligent with high positioning accuracy.

Contact Dispensing System Key Applications

Intelligent, Error-Proof and User-Friendly Operation
The equipment can directly capture MARK points of standard products as positioning templates for real-time comparison. It also supports edge positioning based on product features, triggering timely alarms for abnormal workpieces to effectively prevent misplacement and missing placement.

Modular Design for Flexible Configuration

This equipment is available with optional add-ons including QR code scanning, MES system integration, liquid level detection and automatic glue wiping functions. Both the control system and hardware adopt a modular design for easy operation, rapid maintenance and component replacement.

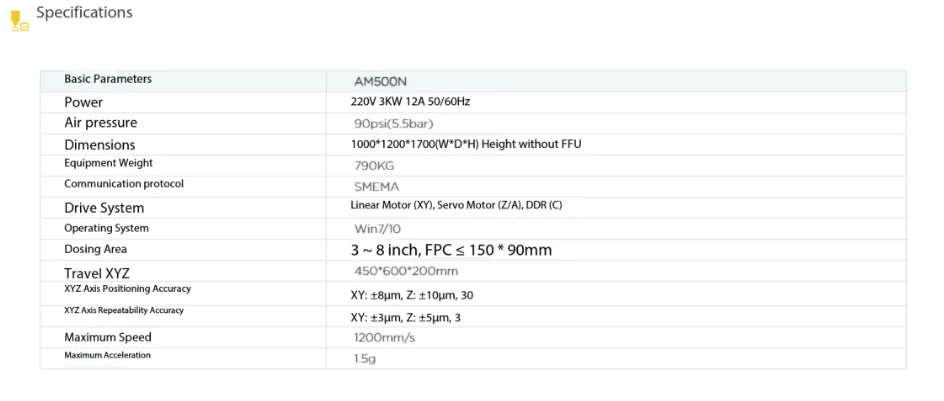

Contact Dispensing System Specifications and Parameters

- Fully automatic image recognition and dispensing
- Industry-first five-axis linkage control technology that meets all spatial dispensing trajectory requirements of workpieces with precise dispensing results
- Non-contact laser height measurement technology to automatically detect product height and adjust dispensing height accordingly

- A wide range of optional extended functions to satisfy diverse dispensing requirements

Key Applications
- Consumer Electronics
- Hot-melt adhesive for polarizers and backlight round holes of LCD screens
- Dispensing sealing glue for the inner cavity of mobile phone middle frames
- Sealing glue dispensing for the inner cavity of mobile phone chargers
- Ink dispensing on the inner walls of round holes of OLED screens
