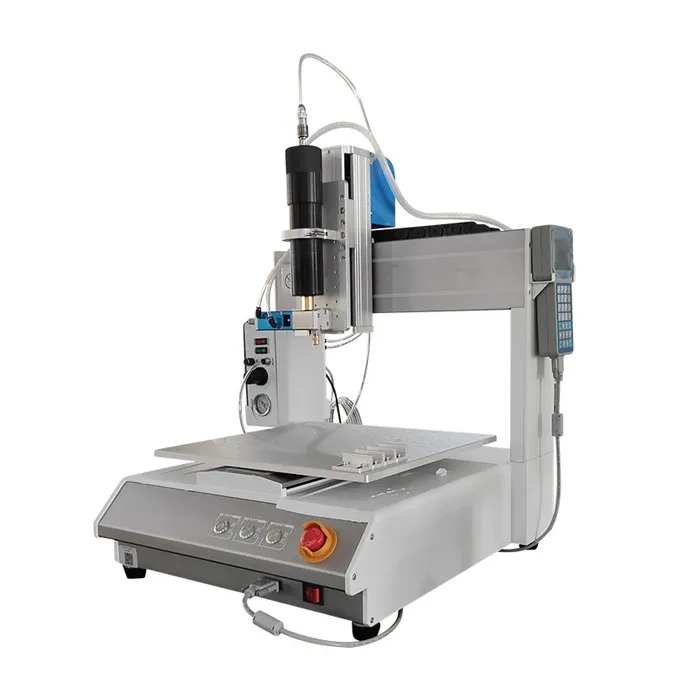

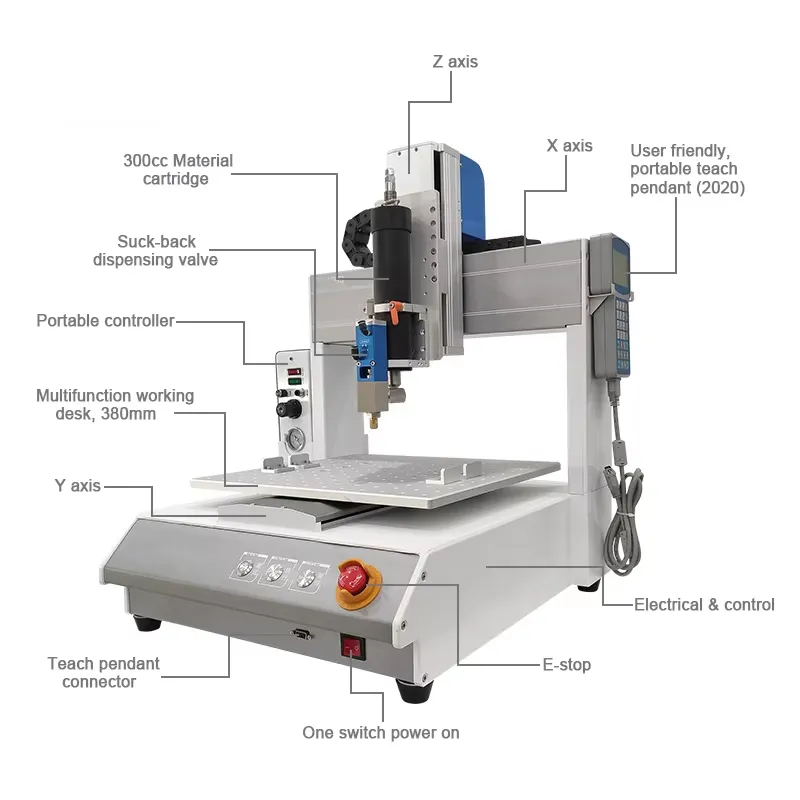

3 Axis AB Glue Dispenser Machine
3 Axis AB Glue Dispenser Machine XH-E380
1. Full-automatic 3 axis AB glue dispenser machine can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2. Graphics import or machine screen edit, easy to operate with high precision.
3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.

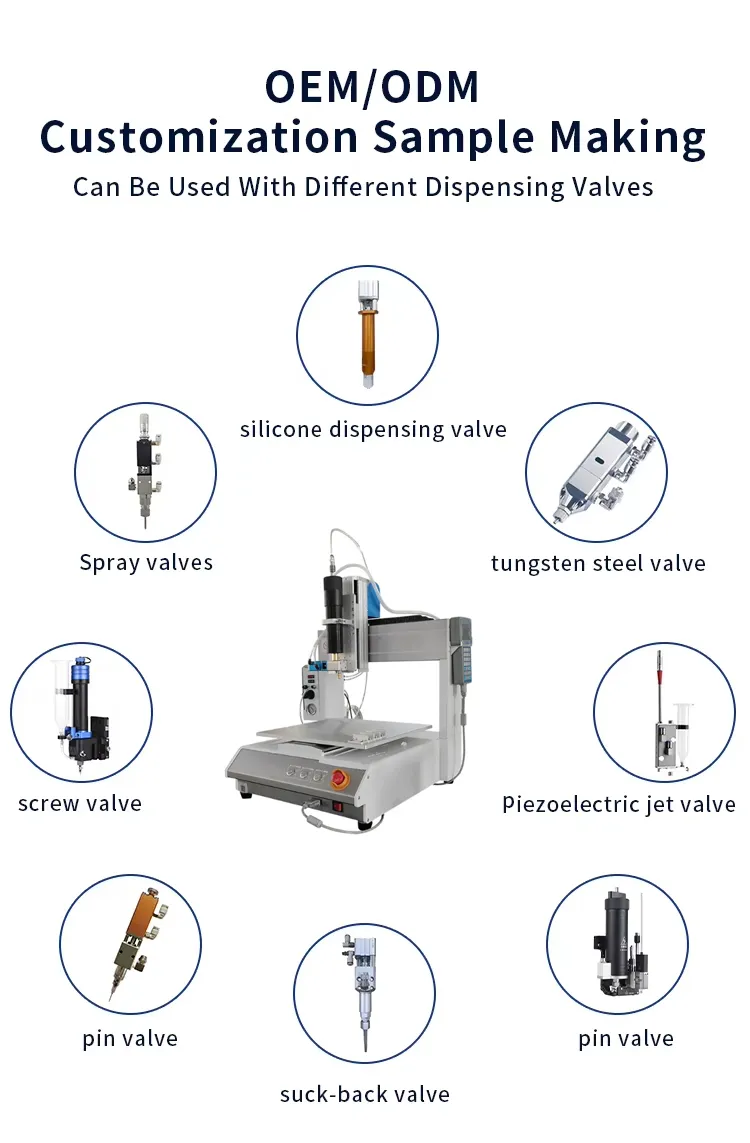

4. The glue dispenser machine can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6 .Aluminum alloy structure ensures stability, corrosion resistance, and long service life.
Applicable glue:Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
2. Graphics import or machine screen edit, easy to operate with high precision.
3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4. The glue dispenser machine can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6 .Aluminum alloy structure ensures stability, corrosion resistance, and long service life.
Applicable glue:Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
| Model | XH-E380 |
| Working range | 380(X) * 380(Y) * 100(Z) mm |
| Max payload | 7kg / 5kg |
| Max travel speed | 500 mm/sec (XY) / 100 mm/sec (Z) |

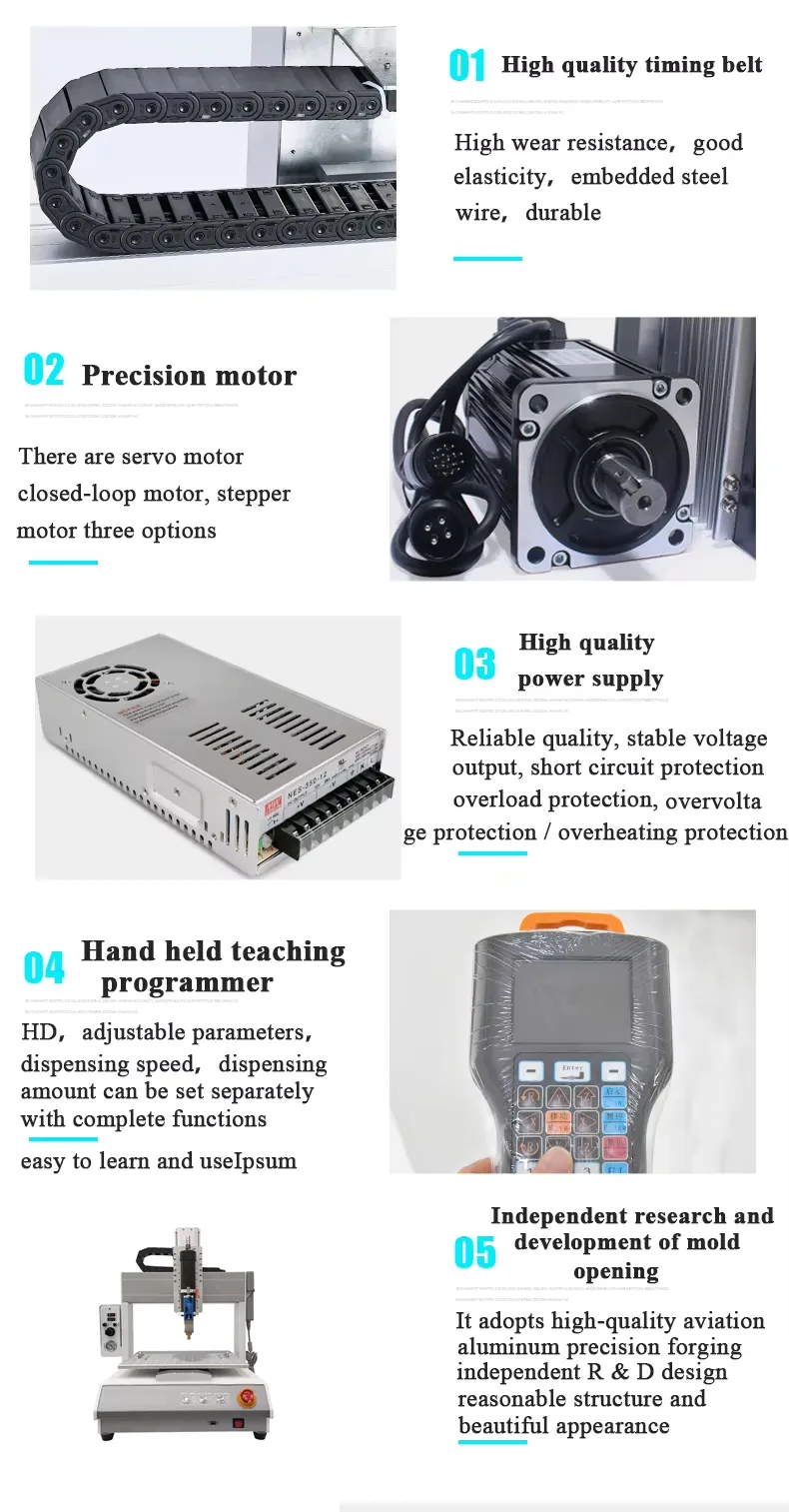

| Transfer method | Stepper motor, belt, precision rail |
| XYZ position accuracy | ±0.008 mm |
| Resolution | 0.01 mm |
| Memory storage | 999 program setup (each program store up to 65535 spots) |
| Operating method | LCD, Teach pendant |
| Motor | Precision stepper motor |

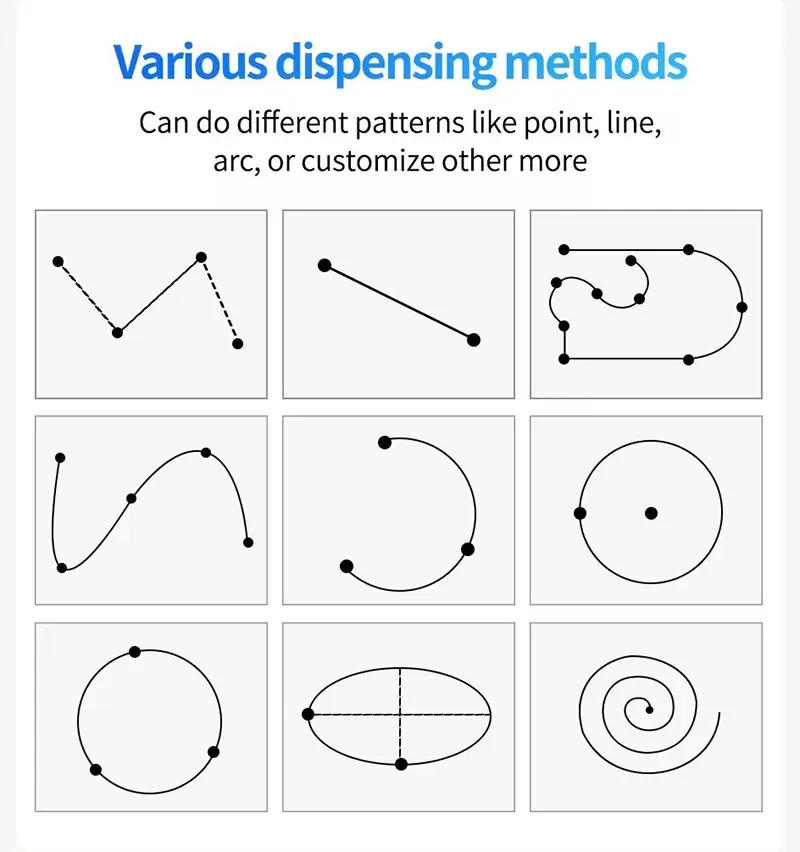

| Movement patterns | 3 axis spot to spot, continuous line, arc |
| I/O | 1 input, 4 output (support expansion) |
| Power supply | AC220V 50/60Hz 0.5 kW |
| Working environment | Temperature 0-40℃, Humidity 20-90% |
| Machine dimension | 520 * 583 * 645 mm |
| Weight | 48 kg |
FAQs
-
What types of glue can the glue dispenser handle?It is compatible with AB glue, epoxy, and other two-component adhesives.
-
What is the accuracy of dispensing?The repeatability is ±0.02mm.
-
Can it handle irregular shapes?Yes, it supports point, line, arc, and custom paths.
-
Is the nozzle rotatable?Yes, the nozzle can rotate 0–360° (optional feature).
-
Can it integrate with a production line?Yes, it is designed for easy integration into automated lines.
-
How is it packaged for shipping?Bubble wrap, foam, and wooden crate.
-
What warranty is provided?12 months from shipment.
-
Do you offer operator training?Yes, we provide both remote and on-site training.
