SMT Glue Dispenser Machine

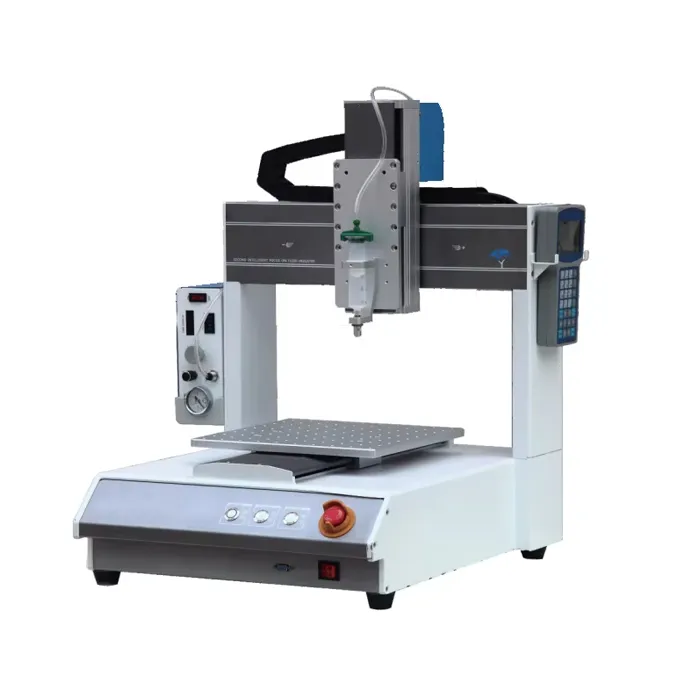

Three-Axis SMT Glue Dispenser Machine

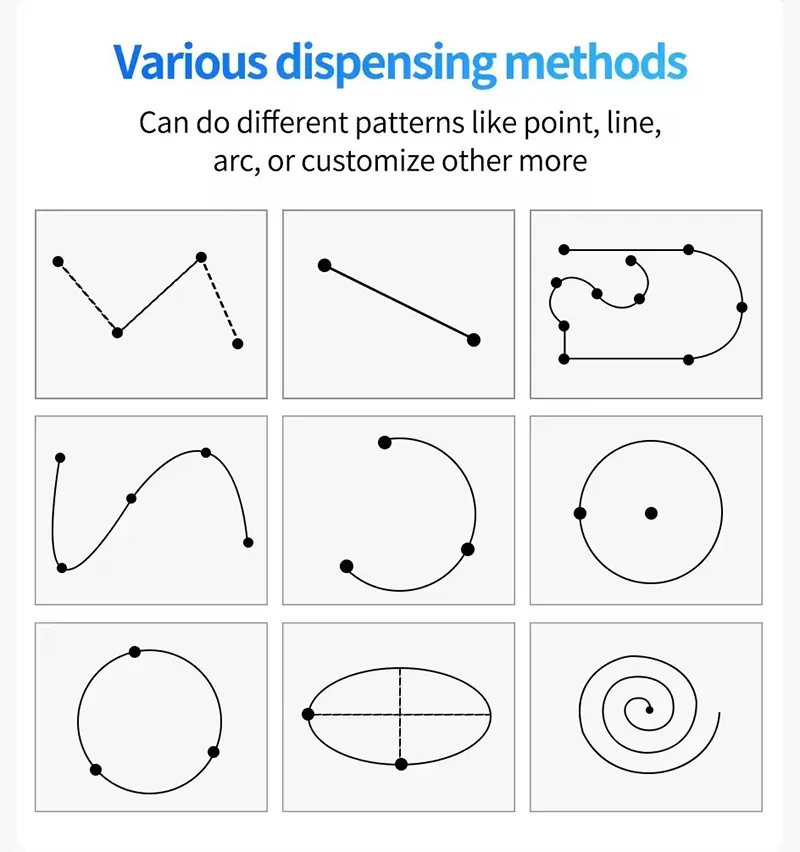

The SMT glue dispenser machine use Three-Axis Control System,it has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating,automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function. Designed for high-precision adhesive application in SMT, PCB, LED, and electronic assembly processes.

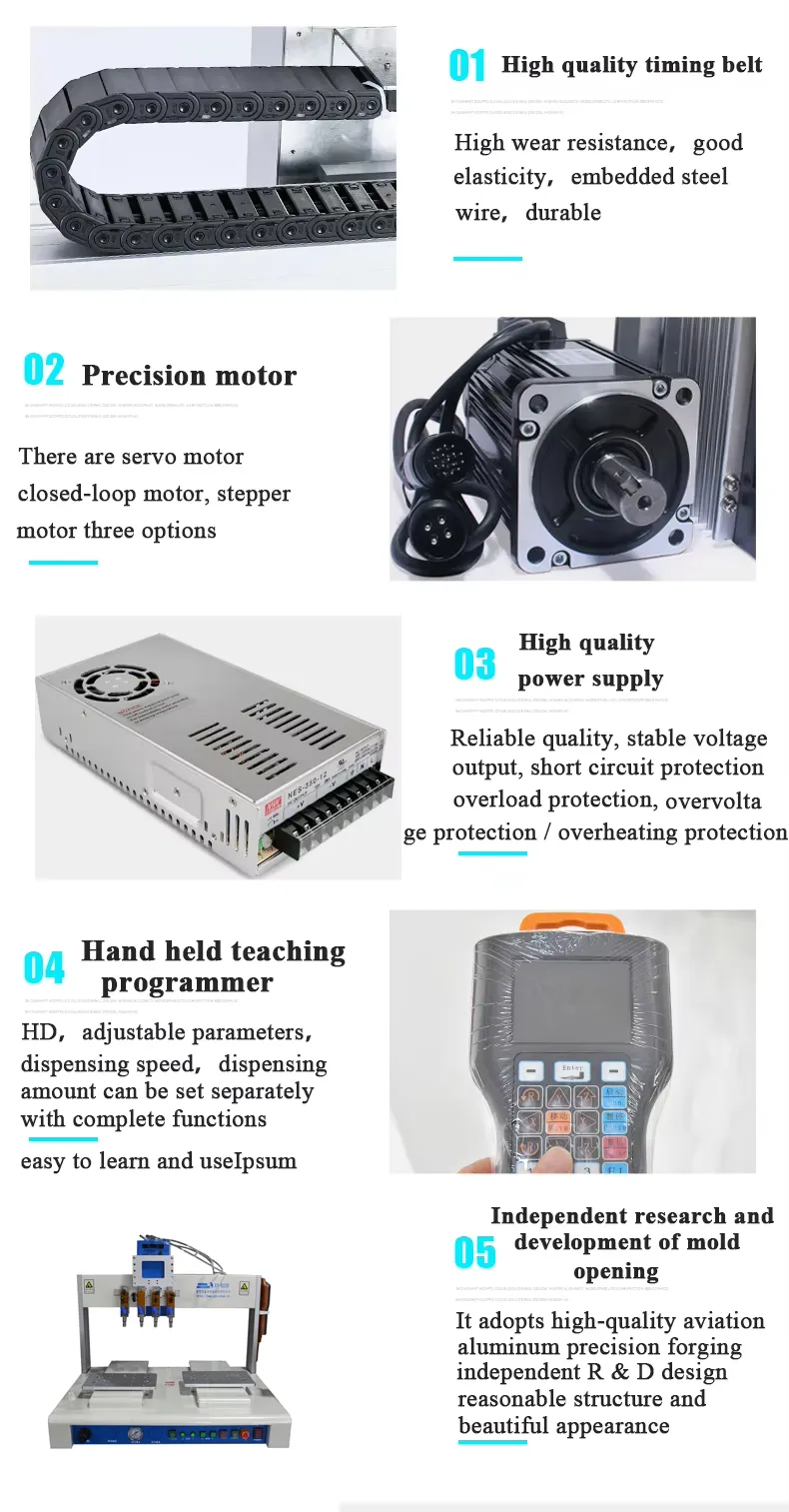

1. The handheld box adopts 320*240 high resolution color screen, it is easy to use.
2. The handheld box is equipped with 2G SD card which can store thousands of processing files, each file can support 8000 instruction, you can bring up to use.
3.It has the function of breakpoint executive function, can be executed from the specified point.
4. The glue dispenser machine has the function of area array replication, migration operation, batch edit, single-step operation, I/O input and output.
5. The dispenser machine has the automatic execution, automatic reset, output setting, processing time timer.
6. Support DXF and PLT file import, automatic path optimization.
7. Each action command has independent glue opening delay, glue closing delay, gun retreat height, independent function of glue closing in advance and flexible batch modification function can improve the editing efficiency, and also can solve the problem of glue stacking.
8.The Three-axis SMT glue dispenser machine is suitable for fluid glue, such as UV, AB glue, COB (black glue), white glue, EMI conductive Glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,Transparent paint, screw fixative and so on.
1. The handheld box adopts 320*240 high resolution color screen, it is easy to use.
2. The handheld box is equipped with 2G SD card which can store thousands of processing files, each file can support 8000 instruction, you can bring up to use.
3.It has the function of breakpoint executive function, can be executed from the specified point.
4. The glue dispenser machine has the function of area array replication, migration operation, batch edit, single-step operation, I/O input and output.
5. The dispenser machine has the automatic execution, automatic reset, output setting, processing time timer.
6. Support DXF and PLT file import, automatic path optimization.
7. Each action command has independent glue opening delay, glue closing delay, gun retreat height, independent function of glue closing in advance and flexible batch modification function can improve the editing efficiency, and also can solve the problem of glue stacking.
8.The Three-axis SMT glue dispenser machine is suitable for fluid glue, such as UV, AB glue, COB (black glue), white glue, EMI conductive Glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,Transparent paint, screw fixative and so on.
| Power | 110–220V |
| Controllable Axis | 3 Axis |
| Movable Range (X) | 300 / 400 / 500 / 600 / 700 mm |
| Movable Range (Y) | 300 / 400 / 500 / 600 / 700 mm |
| Movable Range (Z) | 100 mm |
| Max Moving Speed (X) | 600 mm/s |
| Max Moving Speed (Y) | 600 mm/s |
| Max Moving Speed (Z) | 400 mm/s |
| Repeatability Accuracy | ±0.02 mm |
| Air Pressure | 0.5 – 0.7 MPa |
| Program Type | Teach Pendant |
| Storage for Programs | Up to 100 programs; single program up to 1000 points |
| Working Temperature | 0 – 40°C |
| Working Humidity | 20% – 90% (no condensation) |
| Weight | 44 / 60 / 65 / 72 / 80 kg |
| Size | 516×610×596 / 616×610×696 / 716×610×796 / 816×610×896 / 916×610×996 mm |
