Silicone Dispenser Machine

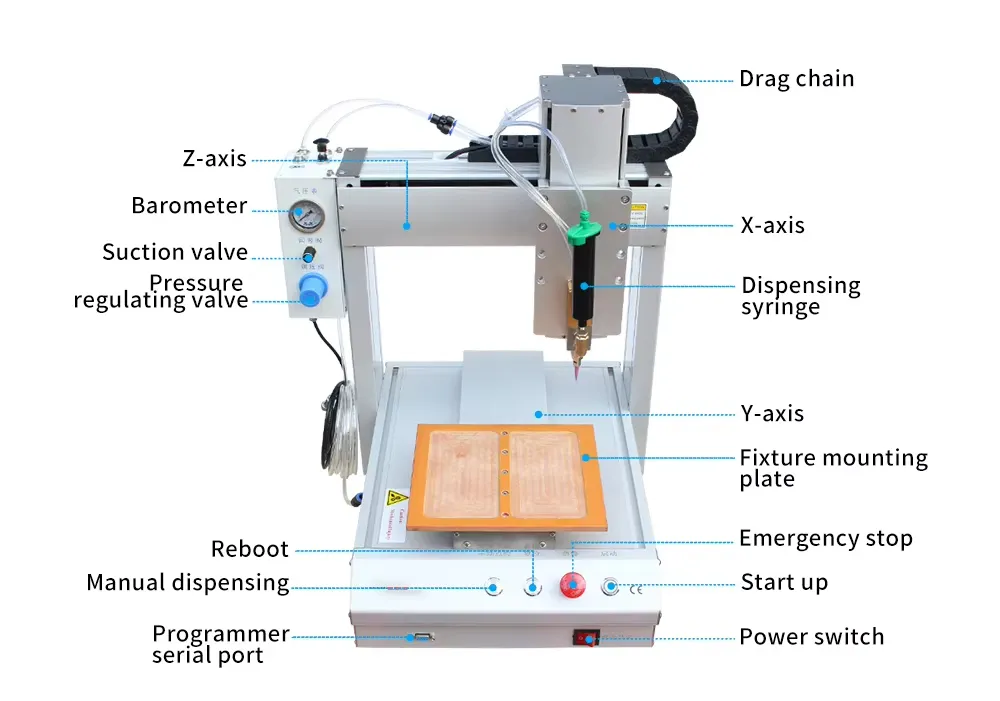

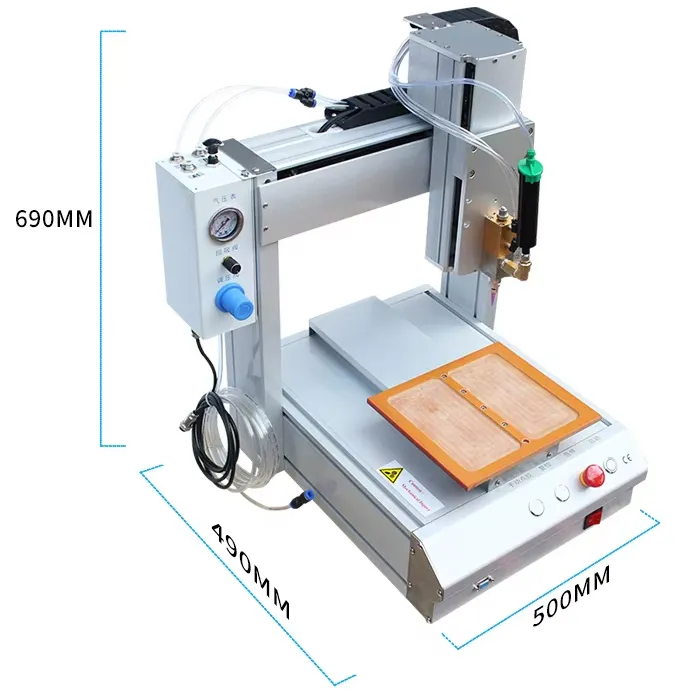

Automatic 3-Axis Silicone Dispenser Machine
Automatic 3-Axis Silicone Dispenser Machine is designed for high-precision dispensing of silicone, epoxy, and other fluid materials across a wide range of industrial applications. With a stable XYZ control system, this machine ensures consistent dispensing accuracy, efficiency, and repeatability — ideal for electronics, LED, automotive, and consumer product assembly lines.
1. Adjustable speed, high efficiency, save time and trouble.
2. One machine suitable for a number of dispensing head,applied to a variety of fields , like : LED glue dispengding, PCB coating, Lens dispensing, Electronics potting etc.
3. Processing using high-quality aluminum, Beautiful appearance
4. HD led display,Handhe ld Programmer.
5. Intelligent adjustment system, Dispensing speed and dispensing volume can be set individually.

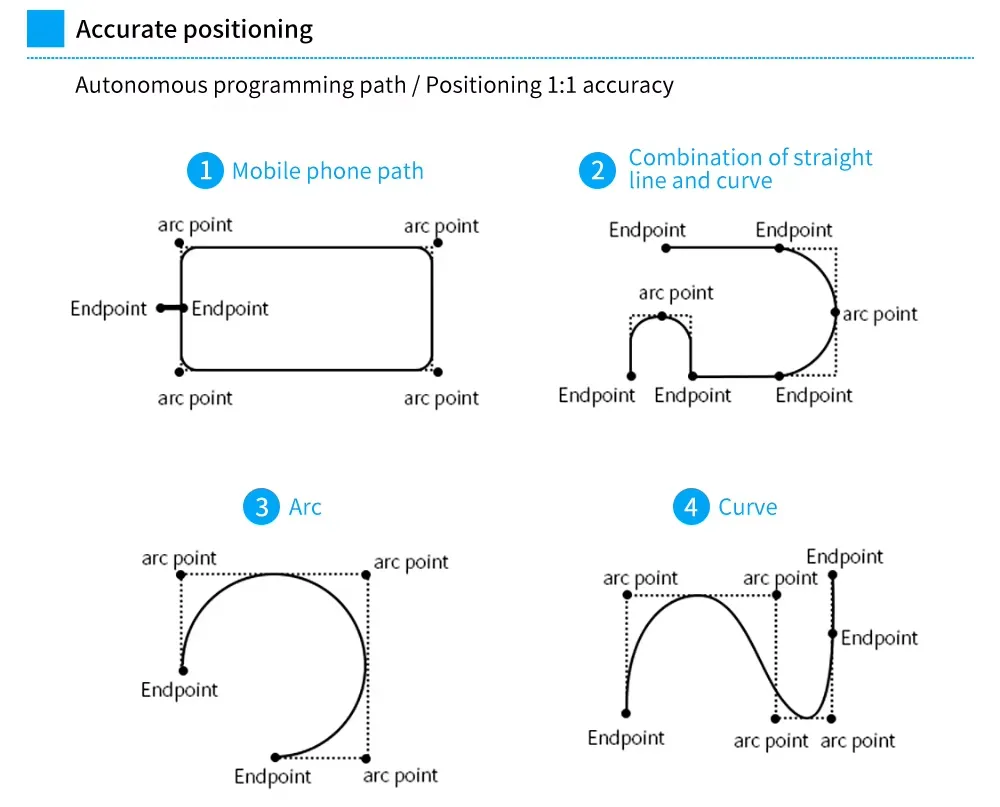

6. Arbitrary motion trajectory, Can do space points, lines, arcs,optional arbitranry shape dispensing.
7. Suitable for different occations ,A variety of dispensing needles,syringes, dispensing ,valves and controllers,Meet different requirement.
1. Adjustable speed, high efficiency, save time and trouble.
2. One machine suitable for a number of dispensing head,applied to a variety of fields , like : LED glue dispengding, PCB coating, Lens dispensing, Electronics potting etc.
3. Processing using high-quality aluminum, Beautiful appearance
4. HD led display,Handhe ld Programmer.
5. Intelligent adjustment system, Dispensing speed and dispensing volume can be set individually.
6. Arbitrary motion trajectory, Can do space points, lines, arcs,optional arbitranry shape dispensing.
7. Suitable for different occations ,A variety of dispensing needles,syringes, dispensing ,valves and controllers,Meet different requirement.
| X axis working stroke | 300mm |
| Y axis working stroke | 300mm |
| Z axis working stroke | 100mm |
| Transmission mode | Double guide belt |
| Power source | Stepper motor |
| Max speed | X, Y1, Y2 axis 500mm/sec, Z axis 300mm/sec |
| Repeat accuracy | ±0.02mm |
| Maximum load | X/Y/Z - 5kg/5kg/3kg |
| Control System | Three-axis control system |
| File storage space | The maximum storage space occupied by a single processing file is 3M (5000 processing points) |
| Machine power | AC110-250V 50-60HZ 350W |
| Weight (kg) | 55kg |
FAQs
-
What materials can this silicone dispensing machine dispense?It supports silicone, epoxy, PU, UV, AB glue, and other two-component adhesives.
-
What is the dispensing accuracy?The repeatable accuracy is ±0.02mm.
-
Can it handle 3D surfaces?Yes, the 3-axis system supports 3D contour and irregular surface dispensing.
-
Is programming complicated?No, it uses a simple point-teaching system and visual programming.
-
Can I customize the working area?Yes, we offer custom working sizes upon request.
-
Does it support multiple nozzles?Multi-head configurations are optional for simultaneous dispensing.
-
What is the warranty period?12 months warranty with lifetime technical support.
-
How do you ensure quality before delivery?Each silicone dispensing machine is tested with real adhesive and calibration prior to shipment.
-
Can the machine integrate with production lines?Yes, the automatic silicone dispensing machine supports I/O signal integration for automation systems.
-
Do you provide overseas technical support?Yes, we offer remote and on-site support worldwide.
