CNC Glue Dispenser Machine

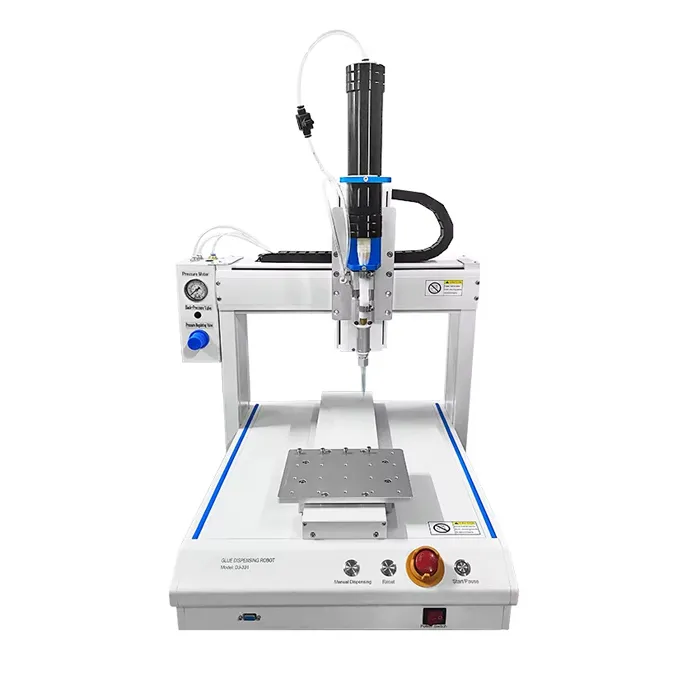

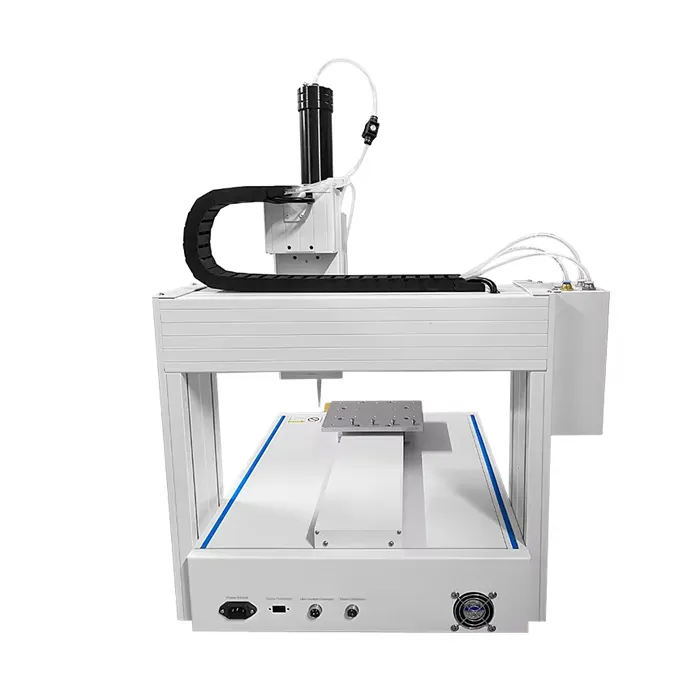

Automatic 3 Axis CNC Glue Dispenser Machine
This automatic 3 axis CNC glue dispenser machine has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can repid recovery cost.

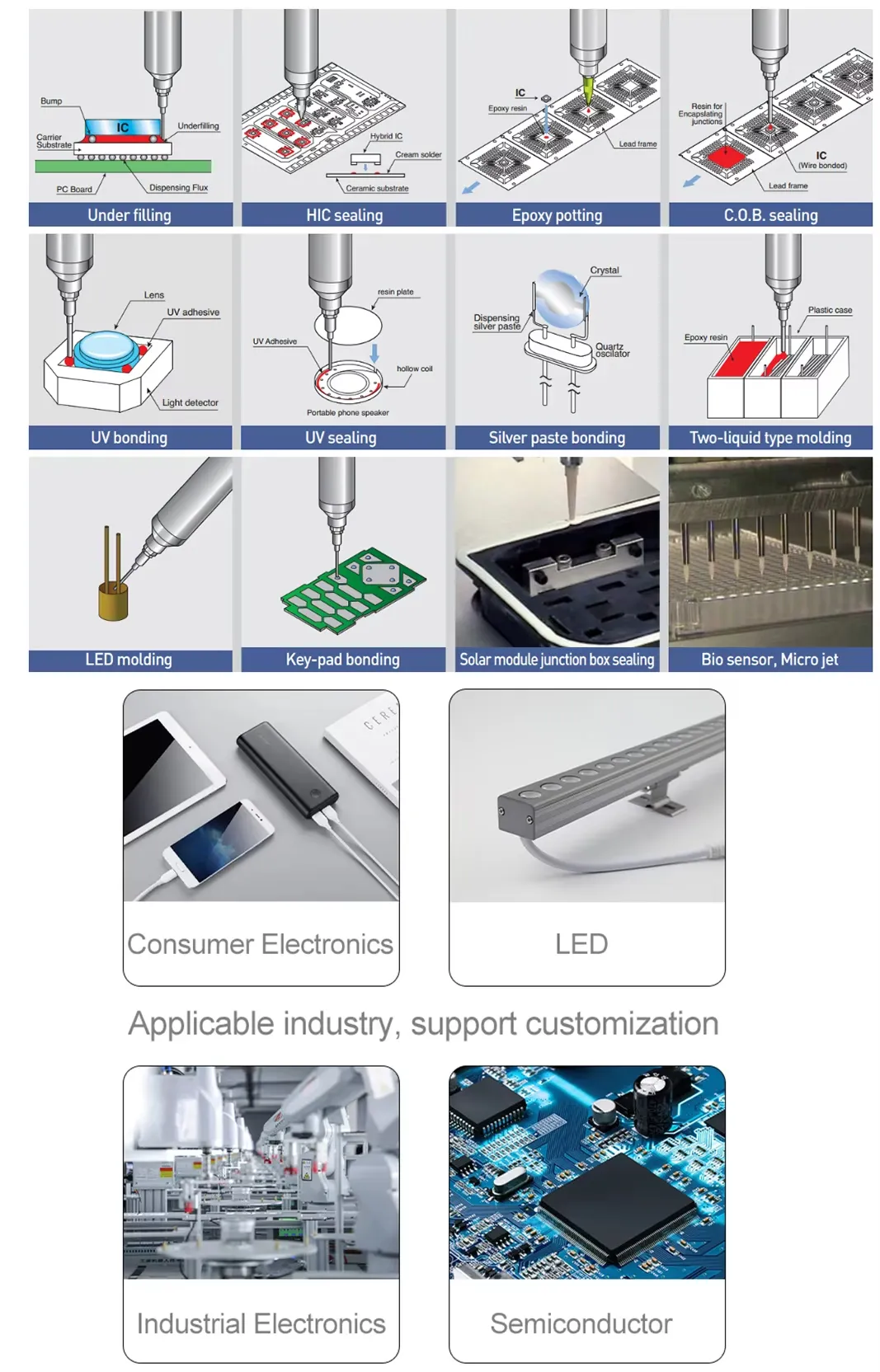

The CNC glue dispenser machine will dispense most materials including adhesives, pastes, epoxies, gels, silicones, sealants, oils, grease, UV, AB glue, EMI conductive glue, silver glue, red glue, etc.
Features:
1.Double Y Axis can achieve higher efficiency and more convenient operation.
2.Programming is simple via a teaching pendant. Even complex patterns can be created quickly.
3.Replace the human labor and save labor cost.
4.Simple and convenient operation, high speed and precise control.
5.Realize the precise dispensing by the high-precision motor.
6.High performance Linear structure platform with nice apprearance.
The CNC glue dispenser machine will dispense most materials including adhesives, pastes, epoxies, gels, silicones, sealants, oils, grease, UV, AB glue, EMI conductive glue, silver glue, red glue, etc.
Features:
1.Double Y Axis can achieve higher efficiency and more convenient operation.
2.Programming is simple via a teaching pendant. Even complex patterns can be created quickly.
3.Replace the human labor and save labor cost.
4.Simple and convenient operation, high speed and precise control.
5.Realize the precise dispensing by the high-precision motor.
6.High performance Linear structure platform with nice apprearance.
| Model | XH-331 | XH-5331 | |
| Axis Range | X | 300mm | 500mm |
| Y-1 | 300mm | 300mm | |
| Y-2 | - | 300mm | |
| Z | 80mm | 100mm | |
| R | 360° | 360° | |
| Dimension (mm) | L | 450 | 650 |
| W | 450 | 630 | |
| H | 520 | 680 | |
| KG | 50 | 60 | |
| Power Source | 220/110V 50Hz (Please specify) | ||
| Motor | Stepper Motor (Please specify if you need servo motor) | ||
| Precision | ±0.02mm | ||
| Control System | 3-axis / 4-axis / 5-axis | ||
| Movement Patterns | Point to point, straight line, point, line, circle, arc | ||
| Editing Mode | Teaching Pendant | ||
| Program Capacity | 999 files, each file can save up to 999 points | ||
| Movement Speed | 0.1 ~ 800mm / sec | ||
