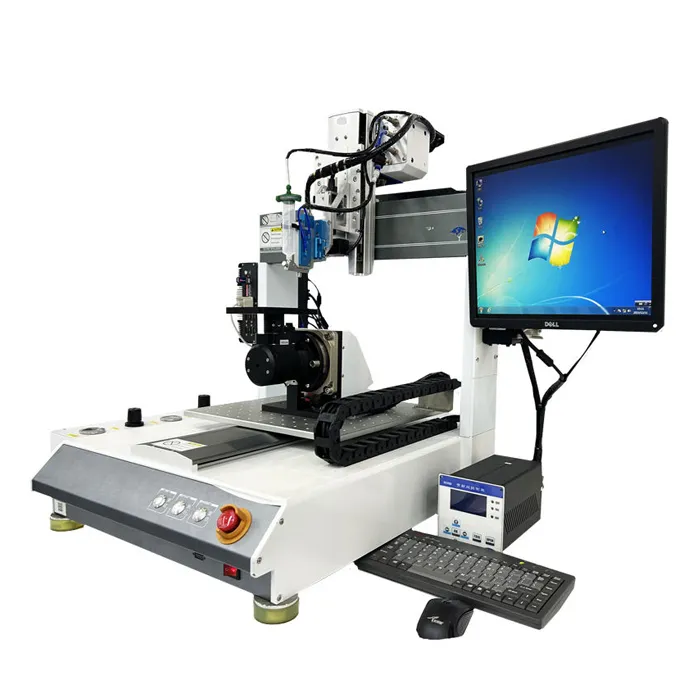

Five Axis Desktop Robotic Glue Dispenser
Five Axis Desktop Robotic Glue Dispenser with High Precision CCD Visual
The Desktop Robotic Glue Dispenser uses PC control with CCD industrial camera, more accurate positioning and easy to programming, user-friendly self-developed dispensing.
software.
2.One-piece die-casting aluminum boday.
3.Can be equipped with different glue supply systems
4.Equipped with Brass Connector, brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.
5.Use Syringe dispensing,suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.

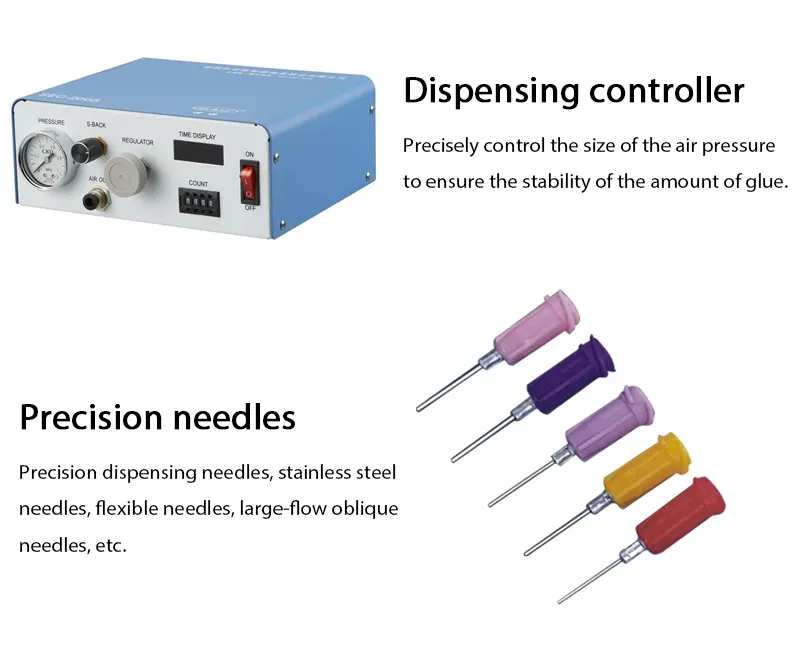

6.Equipped with Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.
software.
Features:

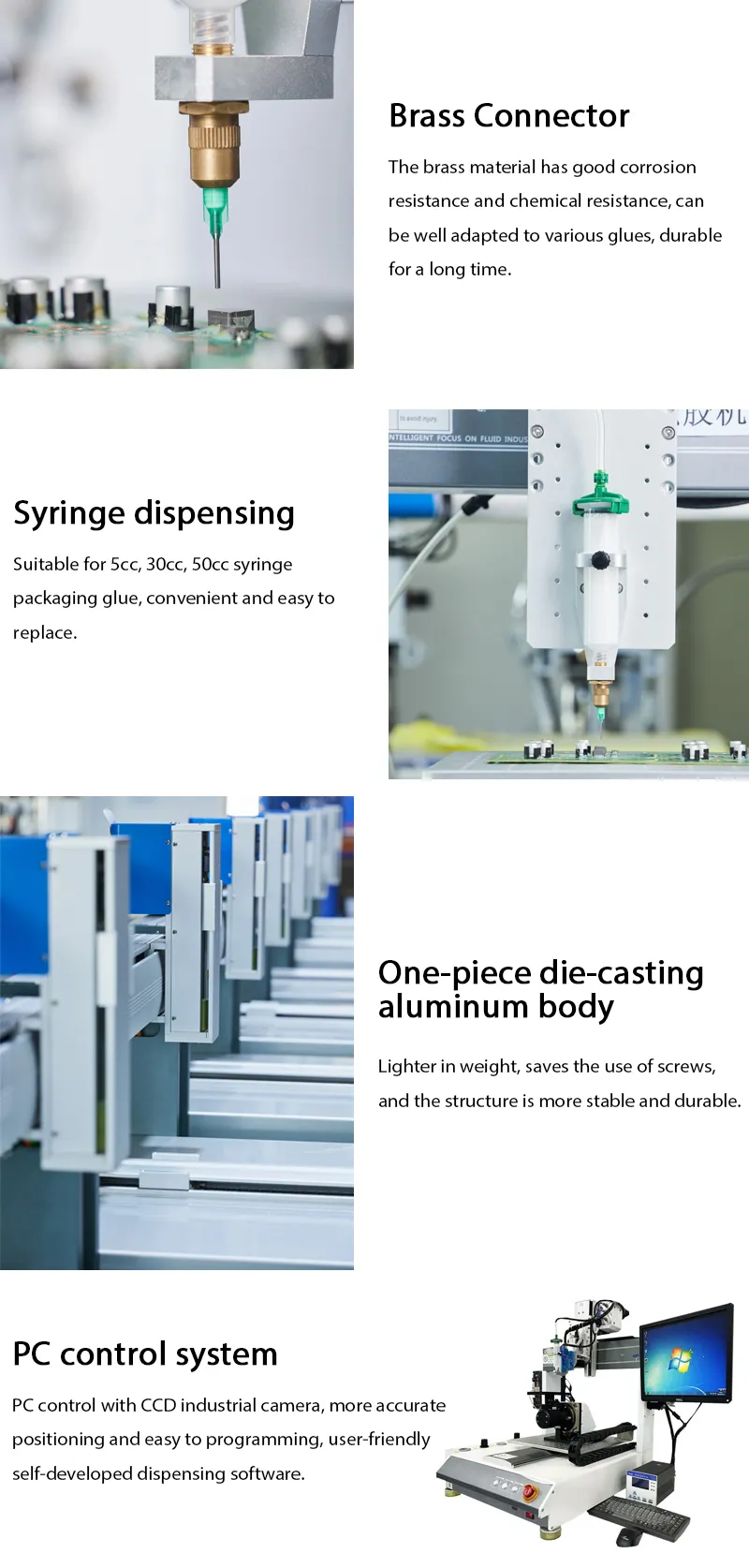

1.Durable fully automatic five axis CCD visual robotic glue dispenser.2.One-piece die-casting aluminum boday.
3.Can be equipped with different glue supply systems
4.Equipped with Brass Connector, brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.
5.Use Syringe dispensing,suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.
6.Equipped with Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.
| Model | XH-380SV | XH-480SV | XH-580SV |
|---|---|---|---|
| Working range | 380(X) × 380(Y) × 100(Z) mm | 480(X) × 480(Y) × 100(Z) mm | 580(X) × 480(Y) × 100(Z) mm |
| Max payload | 20kg(Y) / 15kg(Z) | ||
| Max travel speed | 500 mm/sec (XY) / 200 mm/sec (Z) | ||
| Driven mode | Servo motor, Ball-screw | ||
| XYZ position accuracy | ±0.015 mm | ||
| Resolution | 0.01 mm | ||
| Memory storage | 120G | ||
| Operating method | Windows | ||
| Motor | Servo motor, Ball-screw | ||

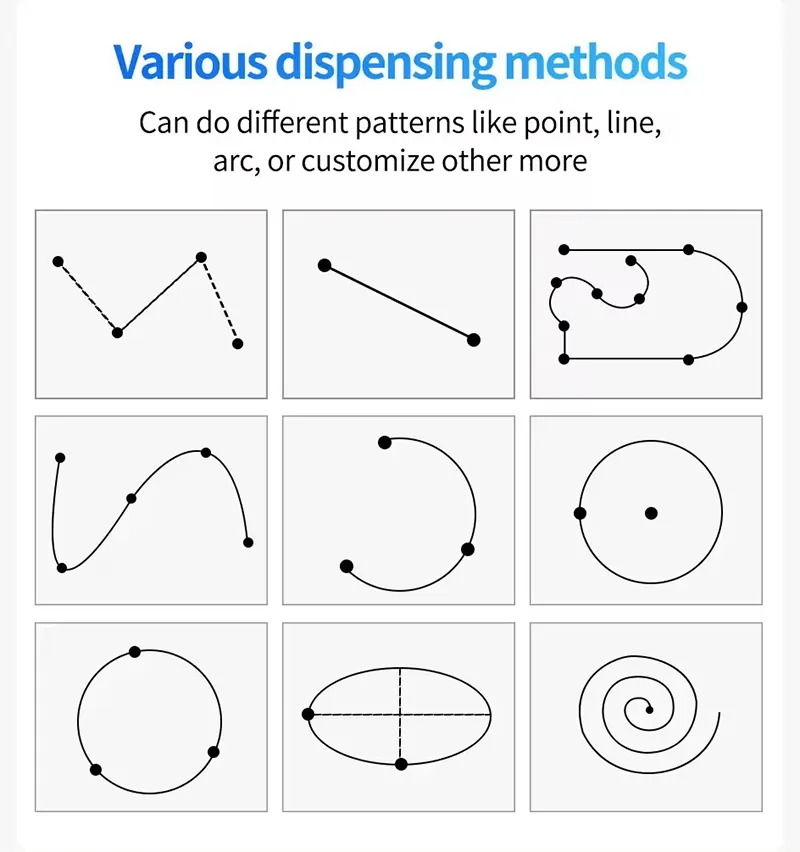

| Movement patterns | 3-axis spot to spot, continue line, arc | ||
| I/O | 1 input, 4 output (support expansion) | ||
| Power supply | AC 220V 50/60 Hz, 1 KW | ||
| Working environment | Temperature 0~40℃, Humidity 20%~90% | ||
| Weight | Approx 48 kg | Approx 60 kg | Approx 75 kg |
| Machine dimension | 520 × 583 × 645 mm | 620 × 683 × 645 mm | 720 × 783 × 645 mm |
