CCD Visual Glue Dispensing Machine

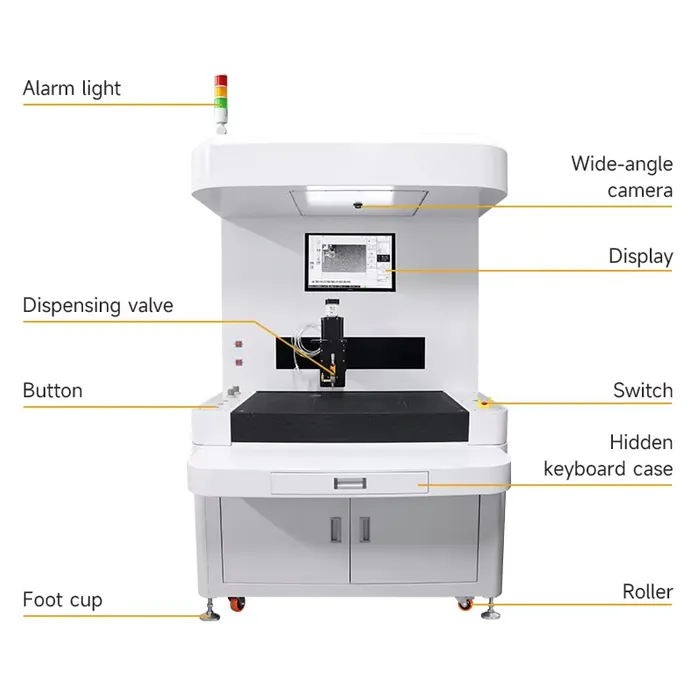

CCD Visual Glue Dispensing Machine XH-QE400
The CCD visual glue dispensing machine adopts a panoramic automatic recognition system, featuring strong identification capability, high adaptability to various complex products, and excellent stability. It uses an imported industrial camera with a resolution of up to 8 million pixels, ensuring high clarity and precision. With its high recognition accuracy and fast dispensing speed, it is widely used across multiple industries.
The glue dispensing machine automatically detects dispensing paths regardless of product orientation, allowing for precise dispensing in points, lines, curves, S-shapes, and circular paths. It can automatically identify defective or non-dispensing areas, while supporting multi-head dispensing for higher efficiency, faster speed, and reduced labor costs. Compared to manual dispensing, this system excels in performing micro-amount dispensing in narrow gaps, achieving operations that are difficult or impossible to perform manually.

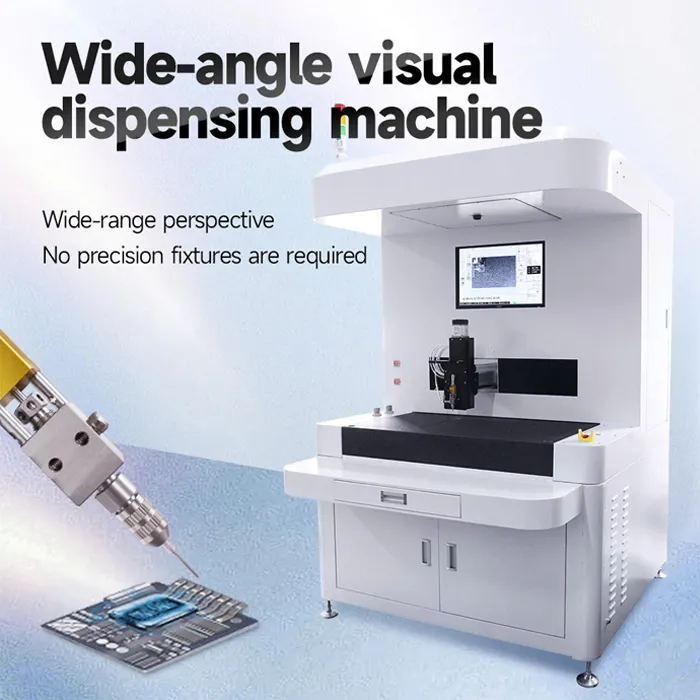

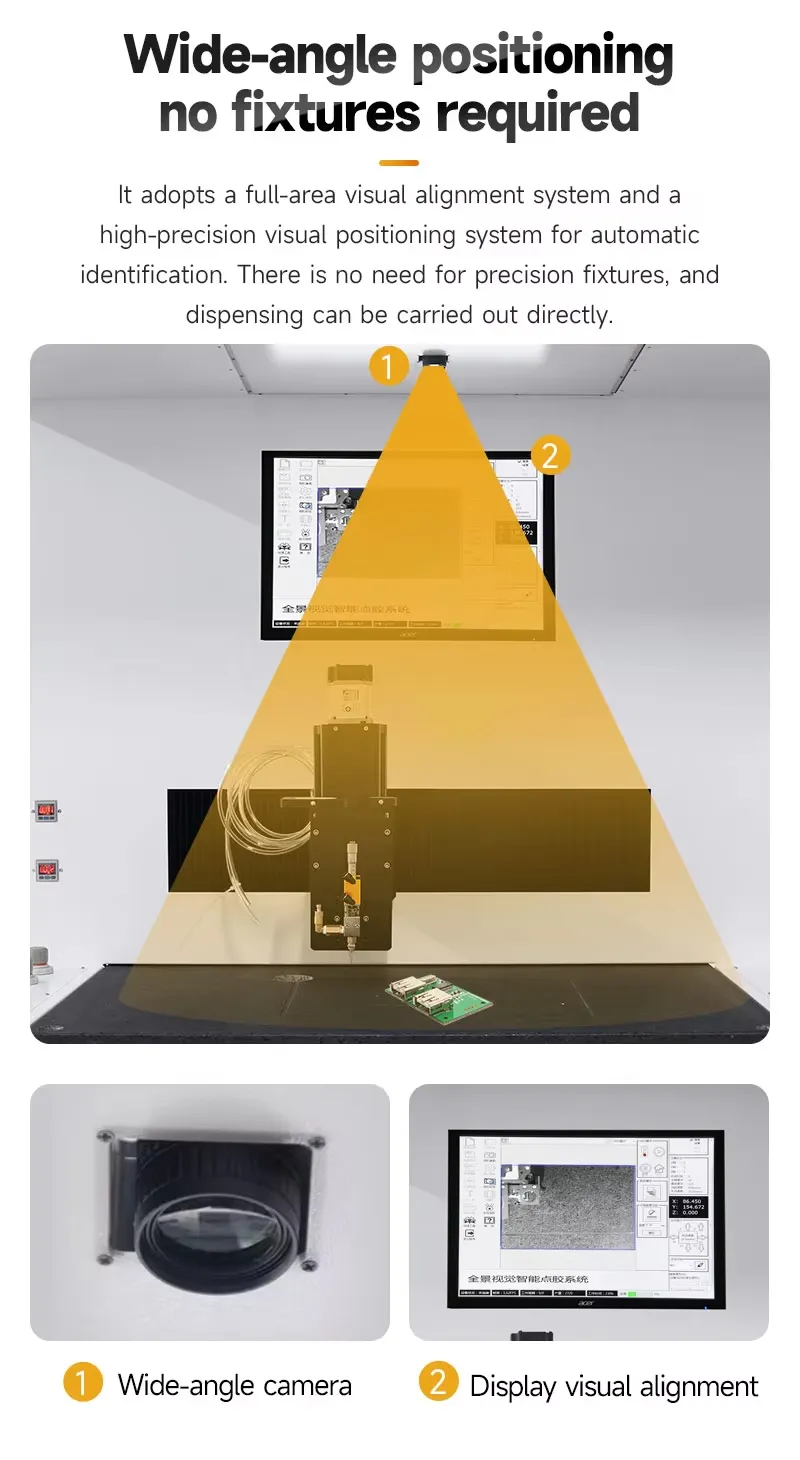

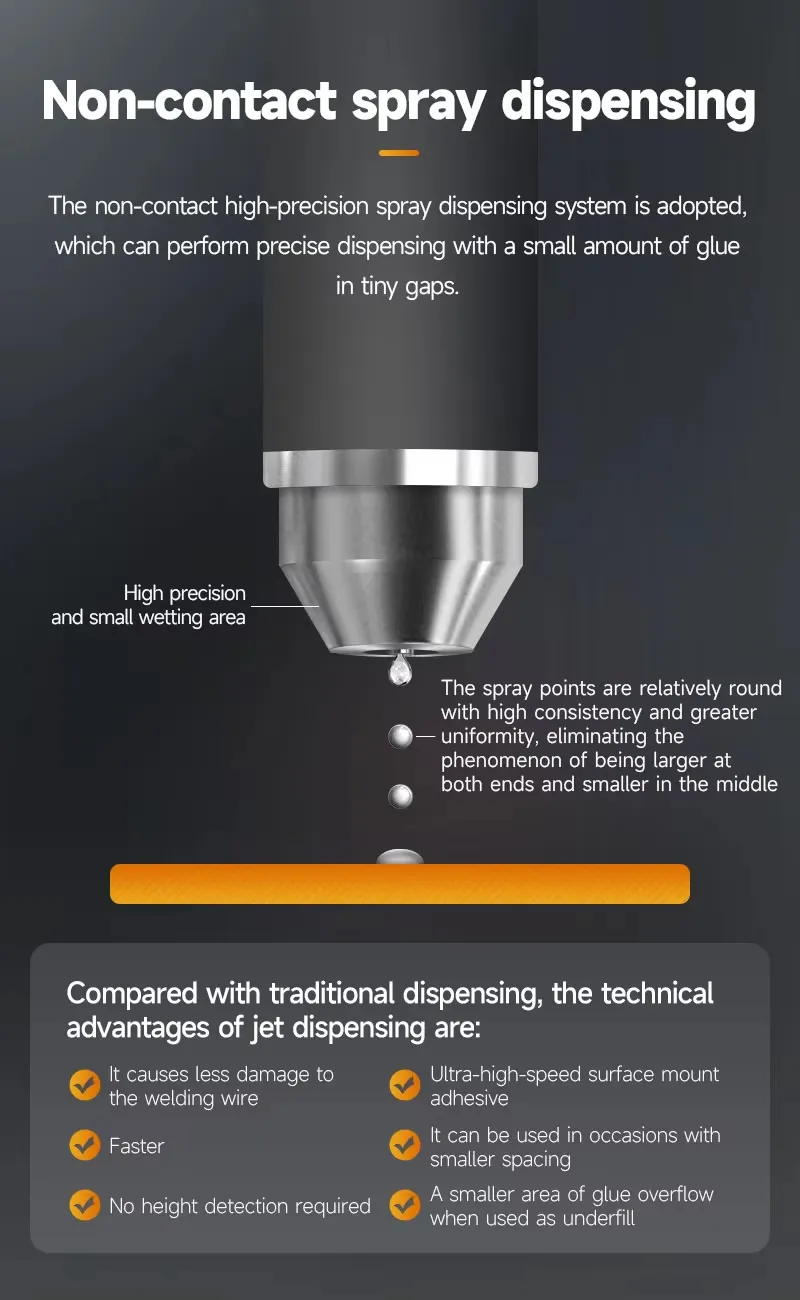

The glue dispensing machine is designed with two automatic workstations for continuous 24-hour operation, significantly improving productivity. It can be equipped with a high-speed dispensing valve or jet dispensing valve system. Without the need for precision fixtures, products can simply be placed on the workbench, where the vision system scans and automatically generates dispensing paths. It can also automatically detect defective or unnecessary dispensing areas, thereby saving production costs.
Suitable Glue:Silicone, EMI conductive adhesive, UV adhesive, AB adhesive, instant adhesive, epoxy resin adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw fixing Agents, etc.
The glue dispensing machine automatically detects dispensing paths regardless of product orientation, allowing for precise dispensing in points, lines, curves, S-shapes, and circular paths. It can automatically identify defective or non-dispensing areas, while supporting multi-head dispensing for higher efficiency, faster speed, and reduced labor costs. Compared to manual dispensing, this system excels in performing micro-amount dispensing in narrow gaps, achieving operations that are difficult or impossible to perform manually.
The glue dispensing machine is designed with two automatic workstations for continuous 24-hour operation, significantly improving productivity. It can be equipped with a high-speed dispensing valve or jet dispensing valve system. Without the need for precision fixtures, products can simply be placed on the workbench, where the vision system scans and automatically generates dispensing paths. It can also automatically detect defective or unnecessary dispensing areas, thereby saving production costs.
Suitable Glue:Silicone, EMI conductive adhesive, UV adhesive, AB adhesive, instant adhesive, epoxy resin adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw fixing Agents, etc.
| Parameter | Specification |
|---|---|
| Working Area | X: 500mm / Y: 400mm / Z: 100mm |
| Machine Size | 1200mm × 1380mm × 1960mm |
| Max Speed | 300mm/s |
| Repeat Accuracy | ±0.02–0.05mm (Customizable within ±0.02mm) |
| Vision System | Wide-angle camera + 0.1s alignment |
| Control System | PC + Motion card (Self-developed) |
| Power Supply | AC220V 50–60Hz 2.2KW |
| Air Pressure | 900–1200mbar |
FAQs
-
What is a CCD visual glue dispensing machine?A CCD visual glue dispensing machine uses a high-resolution camera and intelligent vision system to automatically detect, position, and apply adhesives with extreme precision.
-
What are the advantages of CCD visual dispensing compared to manual operation?It offers faster speed, higher accuracy, consistent quality, and greatly reduces labor costs by automating complex or micro-scale dispensing tasks.
-
What camera system does the machine use?It features an imported industrial CCD camera with up to 8 million pixels, ensuring clear imaging and high-precision recognition during dispensing.
-
What materials or glues can be dispensed with this machine?The system supports silicone, UV adhesive, AB adhesive, epoxy resin, sealant, hot melt glue, conductive adhesive, solder paste, thermal grease, red glue, and more.
-
Can the system detect defective or non-dispensing areas automatically?Yes. The vision recognition system can identify defective products or unnecessary dispensing zones and automatically skip them to save materials.
-
How long can the machine operate continuously?With its dual automatic workstations, it can run 24 hours a day without interruption, improving productivity and stability.
-
Does it support multi-head dispensing?Yes, the system can be configured with multiple dispensing heads to handle multiple products simultaneously, enhancing speed and efficiency.
-
What types of dispensing paths are supported?It supports points, lines, arcs, curves, S-shapes, and circular dispensing paths, adaptable to complex product geometries.
-
Is precision fixture placement required before dispensing?No. The vision system automatically scans product positions and generates dispensing paths, eliminating the need for precise fixture alignment.
-
In which industries is this machine commonly used?It is widely used in electronics, semiconductors, automotive, LED lighting, communication equipment, and consumer electronics manufacturing.
