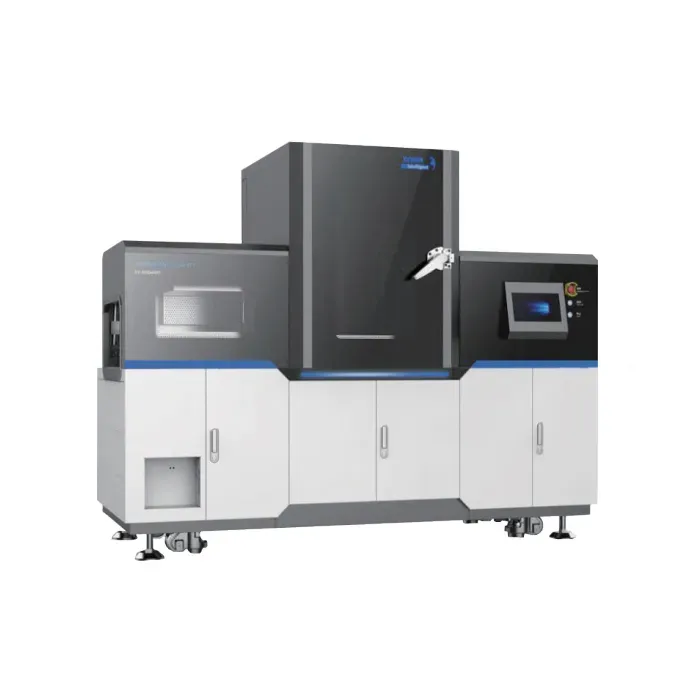

Precision Silicone Potting Machine Built for Global Manufacturing

As the manufacturer behind RangJin Intelligent’s silicone potting machine, I have spent many years working directly inside workshops across Southeast Asia, the Middle East, and the European Union. These regions have different climatic and industrial conditions, yet all demand the same thing from a potting system: stable ratio control, material reliability, and nonstop production capability.

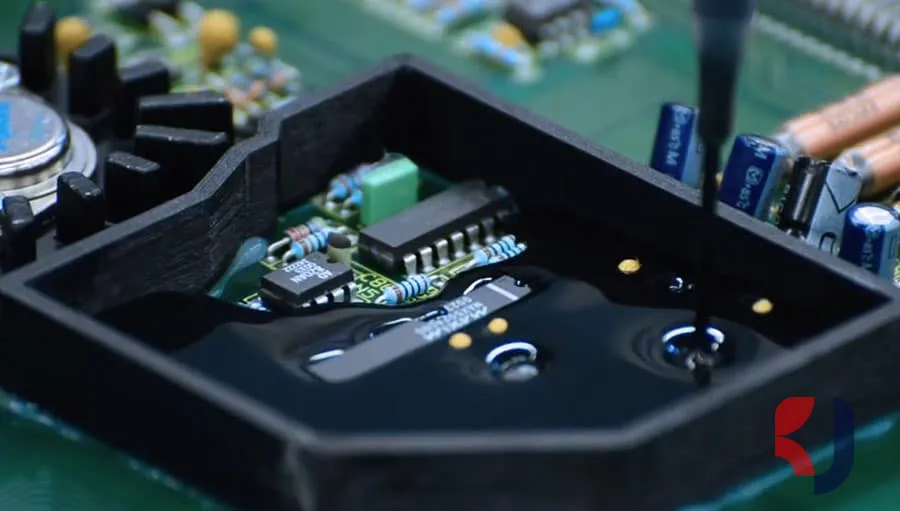

Silicone potting seems simple at first glance—dispense A/B components, mix, and fill. But every engineer who has worked with silicone materials knows that the real challenge lies in the details: viscosity fluctuation, air bubble control, curing behavior, temperature sensitivity, and long-term electrical insulation performance. These challenges shaped the entire design philosophy of our equipment.

1. Why Silicone Potting Demands Engineering Precision

Silicone materials, especially those used for LED drivers, EV sensors, power modules, and outdoor electronics, have specific properties that must be preserved during the potting process:

• High viscosity requiring stable pressure-driven flow
• Long curing time that punishes any mixing ratio deviation
• Air sensitivity where insufficient degassing leads to internal voids
• Thermal and humidity sensitivity in Southeast Asia and the Middle East
• Dimension and weight accuracy demanded by European industrial standards

Technical documentation from Dow and Wacker repeatedly emphasizes that even slight ratio deviations or trapped air can significantly weaken silicone’s mechanical and dielectric performance.
References：

• Dow Silicone Encapsulants — https://www.dow.com
• Wacker Potting Compounds — https://www.wacker.com

These practical challenges are exactly why we design our machines with an engineering-first mindset.

2. Our Core Design Concept: Stability, Repeatability, Serviceability

2.1 Ratio Control: ±0.2% Accuracy

Silicone A/B materials require extremely precise control. Our metering pumps use servo feedback with closed-loop monitoring, which ensures that long runs—especially 8–12 hour shifts common in Southeast Asia—do not drift out of tolerance.

The accuracy is not theoretical; it has been verified through repeated mass tests using different suppliers’ materials (Dow, Wacker, Momentive).

2.2 Viscosity-Adapted Flow System

Because factories in Vietnam, Thailand, and the UAE often operate under unstable temperatures, silicone viscosity can vary by 20–40% within a single day.
To handle this, our systems include:

• Heated pipelines
• Temperature-controlled pressure tanks
• Real-time flow monitoring
• Degassing and stabilizing modules

This ensures material flow remains consistent even in harsh climates.

2.3 Bubble Reduction Through Multi-Stage Degassing

We use a combination of:

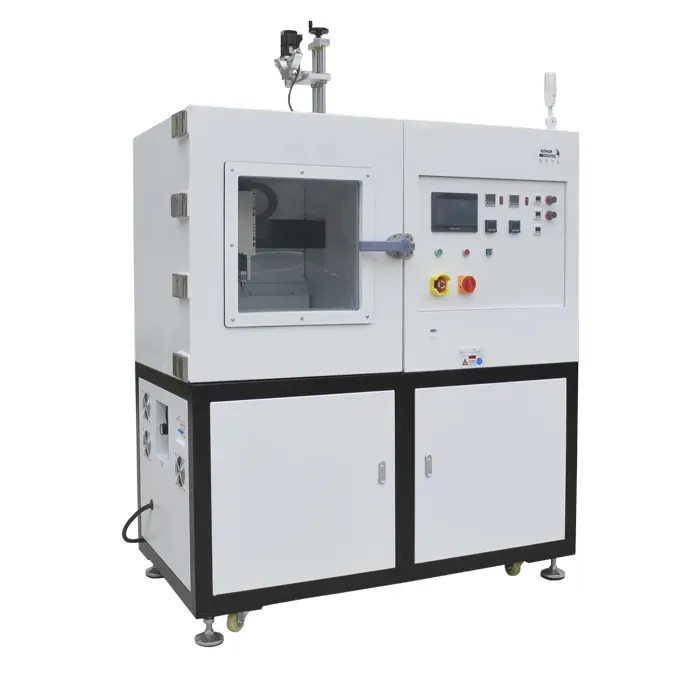

• Vacuum tank degassing
• Inline negative-pressure chambers
• Static mixing tubes

This reduces bubble-related defects by 90–95%, depending on silicone type.

2.4 Serviceability as a Core Value

We design tank covers, valve assemblies, and mixing tubes to be easily removed without special tools.
This is important for factories where maintenance teams may not have advanced equipment.

3. Case Study: LED Driver Factory in Malaysia

This customer’s workshop maintained temperatures between 26–35°C throughout the day, causing silicone viscosity to shift dramatically.

Issues they faced:

• Ratio instability during long production hours
• Bubbles appearing inside LED drivers
• Inconsistent curing, with some units remaining soft after 24 hours

Solution we implemented:

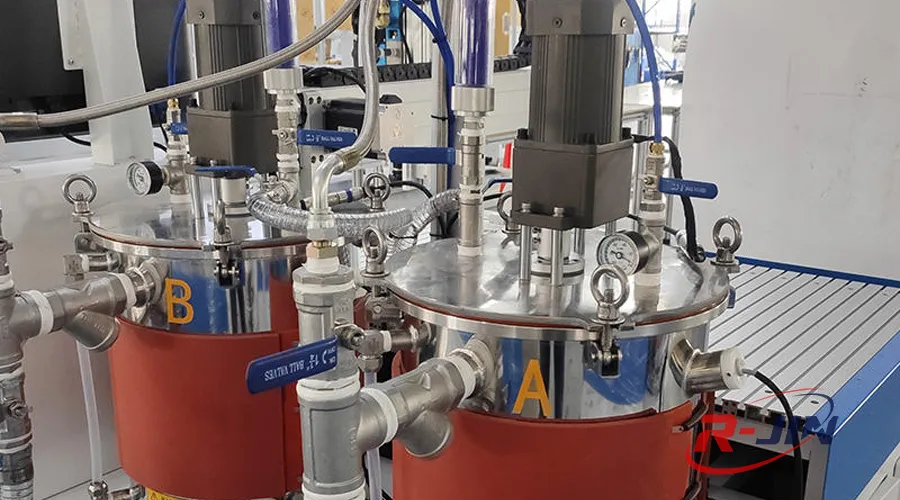

• Two 30L A/B tanks equipped with temperature control
• Vacuum degassing before each batch
• Servo metering with real-time flow compensation

Outcome:

• Yield rate increased from 88% to 99%
• Curing time stabilized to 12–14 hours under all conditions
• Labor reduced from 6 people to 2 operators

The customer later expanded to a second production line using the same model.

4. Case Study: Outdoor Power Supply Factory in the UAE

Working in the UAE means dealing with warehouse temperatures exceeding 45°C during summer months.

Their main challenge:
Curing failures caused by overheated silicone components.

Our engineering solution included:

• Cooling jackets for the A/B tanks
• Fully insulated pipelines
• Modified static mixer suitable for high-temperature regions

Result after installation:

• Zero curing anomalies for three consecutive months
• Improved waterproof ratings in IEC tests
• Significantly reduced rework hours

This case reinforced our belief in environment-specific equipment design for Middle Eastern clients.

5. Case Study: European Automotive Sensor Manufacturer in Poland

European customers typically prioritize precision above all else.
This EV sensor factory required ultra-small volume potting for vibration-resistant modules.

Their requirements:

• ±0.02 g dispensing accuracy
• Full traceability of dispensing volume
• Clean-room compatible design

Our solution:

• Micro-flow servo metering module
• Stainless steel sanitary pipeline design
• Integrated data export to factory MES

Outcome:

• Passed all AEC-Q200 reliability tests
• Reduced product weight variation by over 50%
• Increased line capacity by 40%

The customer called it the most stable potting system they had used.

6. What Makes Our Machines Reliable Over Long Production Cycles

6.1 Full Compatibility with Leading Silicone Brands

Our systems have been tested with:

• Dow encapsulants
• Wacker EL potting compounds
• Momentive silicones

Material suppliers sometimes adjust formulations based on region. We continuously test new batches to ensure compatibility for our customers.

6.2 Heavy-Duty Mechanical Structure

Because many of our clients run 10–14 hour shifts, we prioritize:

• Metal-frame tank supports
• Industrial-grade sensors
• Imported seals and valves
• High-durability stator materials

These help maintain long-term accuracy.

6.3 Local Spare Parts Strategy

We intentionally use components from brands widely available in Asia, EU, and Middle East markets:

• Panasonic / Delta motion control
• Schneider electrical components
• AirTAC pneumatics

This ensures factories can source replacements locally without downtime.

6.4 Full Material Testing Before Delivery

Every customer sends us their silicone in advance.
We test:

• Ratio stability
• Bubble content
• Viscosity behavior
• Curing time

Only after achieving stable results do we ship the machine.

7. Engineering Insights We Learned Over Years of On-Site Service

After participating in many installations and solving countless potting problems, we discovered patterns that most buyers overlook:

Insight 1: Degassing Matters Just as Much as Ratio

Even when ratio is perfect, air trapped during pumping or mixing will cause internal voids.

Insight 2: Environmental Stability Is Critical

Machines behave differently depending on local temperature and humidity.

Insight 3: Pipeline Design Determines Long-Term Performance

Poorly designed pipelines cause backpressure, which eventually leads to ratio drift.

These engineering realities directly shaped the modern generation of our silicone potting machine.

8. Conclusion: Equipment Built from Real Manufacturing Experience

At RangJin Intelligent, our silicone potting machine were not designed based on laboratory theory.
They were shaped by the real conditions we encountered in:

• Malaysian LED workshops
• UAE industrial zones
• European EV sensor labs
• Vietnamese smart lighting factories
• Saudi Arabian outdoor power supply lines

Every technical feature exists to solve a real production problem we have witnessed firsthand.

Our mission remains unchanged:
deliver stable, precise, and long-lasting silicone potting solutions that meet global industrial expectations.

Start Your Silicone Potting Automation Project

We provide sample testing, online demonstrations, and full engineering consultation.
