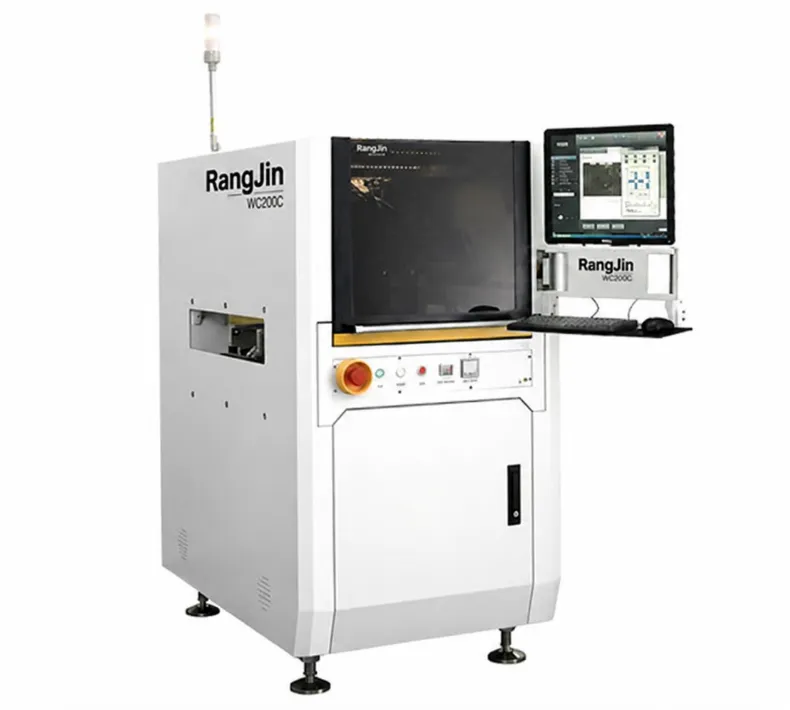

Inline Jet Dispensing Machine
RJ77s Small Online Compact Type
Integrating a wide range of dispensing technologies, the RJ series offers diverse fully automatic inline dispensing solutions. Our fully automatic jetting dispensing solutions have been proven in demanding production environments, enabling them to handle high‑precision encapsulation, underfill, bonding, assembly, and more on complex products with ease. Key applications include consumer electronics, hot‑melt adhesive bonding, underfill, surface mount, stacked packaging, dam‑and‑fill, FPC component reinforcement, and stiffener materials.
Product Features
The RJ series inline fully automatic high‑speed dispensing systems are designed to handle a wide variety of dispensing applications.
- Cost‑Effectiveness
The integrated frame design ensures structural stability, longer system runtime, shorter downtime, and higher efficiency. The use of top‑grade international components reduces failure rates and significantly lowers operating costs. Fewer wear parts also help keep initial acquisition costs down.
- Flexibility
RJ series systems can handle substrates of various sizes. Optional modules such as dual‑track, dual‑valve, tilt, and bottom heating are available for flexible configuration. The versatile platform supports multiple dispensing processes and adhesive types, allowing rapid product changeovers.
- Higher Productivity
Reduced manual intervention increases machine utilization. Precise volume control and accurate vision algorithms improve dispensing yield, ensuring consistent high‑quality output.
Non‑Contact Jetting – Pneumatic & Piezoelectric Jetting Valves
No Z‑axis movement is required. Pneumatic jetting reaches speeds of up to 250 points per second – 3 to 7 times faster than traditional dispensing. Piezoelectric jetting achieves up to 500 points per second, with a minimum dispense volume of 3 nl and consistency that traditional methods cannot match. Non‑contact operation eliminates the risk of needle collision with workpieces, and the ultra‑small dispense volumes make it ideal for increasingly compact spaces.
The RJ series inline fully automatic high‑speed dispensing systems are designed to handle a wide variety of dispensing applications.
- Cost‑Effectiveness
The integrated frame design ensures structural stability, longer system runtime, shorter downtime, and higher efficiency. The use of top‑grade international components reduces failure rates and significantly lowers operating costs. Fewer wear parts also help keep initial acquisition costs down.
- Flexibility
RJ series systems can handle substrates of various sizes. Optional modules such as dual‑track, dual‑valve, tilt, and bottom heating are available for flexible configuration. The versatile platform supports multiple dispensing processes and adhesive types, allowing rapid product changeovers.
- Higher Productivity
Reduced manual intervention increases machine utilization. Precise volume control and accurate vision algorithms improve dispensing yield, ensuring consistent high‑quality output.
Non‑Contact Jetting – Pneumatic & Piezoelectric Jetting Valves
No Z‑axis movement is required. Pneumatic jetting reaches speeds of up to 250 points per second – 3 to 7 times faster than traditional dispensing. Piezoelectric jetting achieves up to 500 points per second, with a minimum dispense volume of 3 nl and consistency that traditional methods cannot match. Non‑contact operation eliminates the risk of needle collision with workpieces, and the ultra‑small dispense volumes make it ideal for increasingly compact spaces.
Let me know if you need a shorter version for a brochure or a more technical variant for a specification sheet.
Basic Parameters
Au77s
Electricity demand
AC230V 11A 50/60Hz 2.5KW(无轨道加热时功率）
Air pressure requirement
90psi(6bar)
Overall Dimensions
770*1200*1400mm(W*D*H)
Weight
650KG
Certification Standards
CE
Positioning accuracy of XYZ axes
XY: ±30um@3σ Z:±10um@3σ
Repeatability Accuracy of XYZ Axes
XY: ±15um@3σ Z:±5um@3σ
Maximum speed
1000mm/s(XY)
acceleration
1.0g
Drive System
伺服电机
Track load capacity
3KG
Track width adjustment range
50~475mm
Substrate Thickness
0.5~6mm
Communication Protocol
SMEMA
Maximum Dispensing Range (Single Track / Dual Track)
350*475mm/350*210mm（W*D）
Specifications and Parameters
