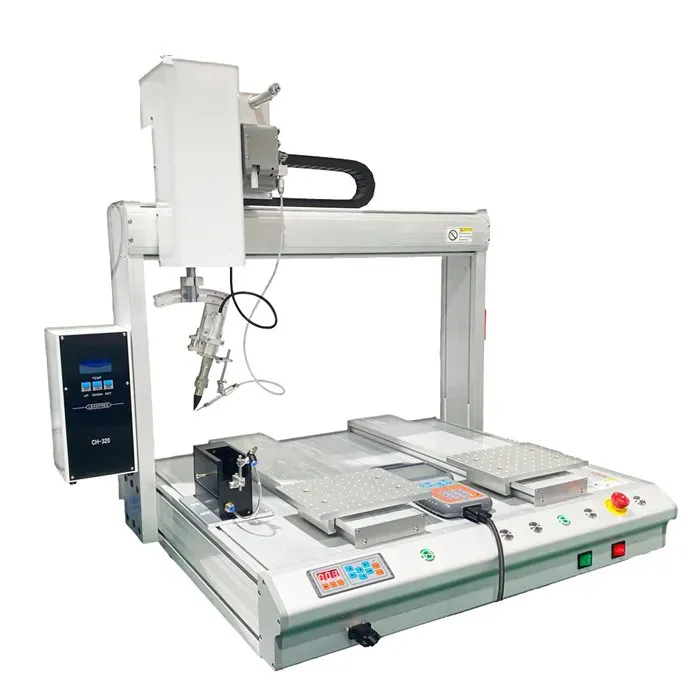

SMD PCB Soldering Machine:Smarter, Safer, Faster Production

In today’s fast-evolving electronics industry, manufacturers are constantly looking for ways to increase production efficiency without sacrificing quality. Soldering, a fundamental step in PCB assembly, is often one of the biggest bottlenecks. Manual soldering is time-consuming, inconsistent, and prone to errors, which can lead to defective products and wasted resources. Enter the SMD PCB soldering machine—a desktop automation solution designed to bring speed, precision, and reliability to your production line.

Unlike traditional soldering methods, SMD PCB soldering machines combine automation, accuracy, and ease of use. They are capable of handling a wide range of SMD components and PCB sizes, making them suitable for both small-scale prototypes and large-scale manufacturing. With these machines, manufacturers can reduce reliance on skilled labor, minimize human error, and produce consistent, high-quality solder joints every time.

Precision and Automation for Reliable Soldering

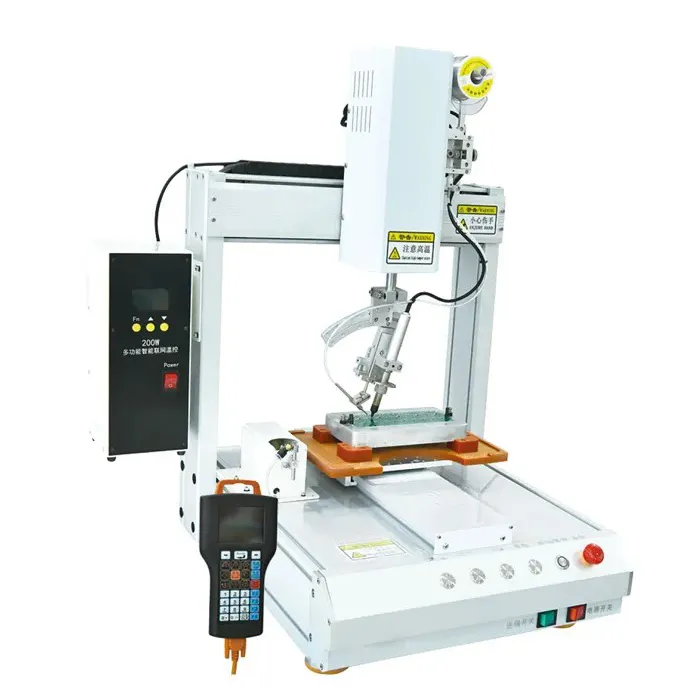

One of the key advantages of modern SMD PCB soldering machines is their vision positioning system. This technology allows the machine to automatically detect solder points, ensuring that each component is placed with pinpoint accuracy. Paired with a handheld LCD teaching pendant, programming soldering paths is intuitive, even for operators without specialized training.

The machine maintains a stable temperature range from 0°C to 550°C, and its solder feeding system operates with ±0.02mm precision. Power options typically range from 150W to 320W, with an air source of 0.4–0.6MPa. These features ensure high-quality solder joints, eliminating common defects such as cold soldering, wire drawing, or inconsistent joints. For electronics manufacturers, this means fewer defects, higher yield rates, and more reliable end products.

Flexible and Fast Production

SMD PCB soldering machines support a variety of solder wire diameters, including 0.5mm, 0.6mm, 0.8mm, 1.0mm, and 1.2mm, giving manufacturers flexibility to work with different components and board designs. The machines can also integrate seamlessly into SMT production lines, enabling fully automated workflows and improved throughput.

When it comes to productivity, these machines truly shine. A single machine can replace up to three skilled soldering operators, with a soldering speed of 1.0–1.5 seconds per point. This rapid operation allows production lines to meet tight deadlines without compromising soldering quality. For businesses looking to scale, the time savings and efficiency gains are significant.

Easy to Use and Maintain

Despite their advanced capabilities, SMD PCB soldering machines are surprisingly user-friendly. With touchscreen controls, visual path editing, and teaching pendant programming, operators can quickly learn how to set up and run the machine. This reduces the need for highly specialized training and allows teams to focus on production rather than troubleshooting.

Maintenance is also straightforward. The machines are designed with a modular structure, making it easy to replace soldering heads, clean the solder feeding system, and perform routine upkeep. This modular design ensures minimal downtime, allowing manufacturers to maintain continuous production with minimal disruption.

Safety and Environmental Features

Modern SMD PCB soldering machines also prioritize operator safety and environmental protection. They are equipped with fume extraction systems to remove solder smoke, temperature alarms to prevent overheating, and emergency stop mechanisms for immediate intervention if needed. These features create a safer working environment and help manufacturers meet modern safety and environmental standards.

Warranty and Support

Investing in a soldering machine is an important decision for any manufacturer, and reliable support is essential. Most SMD PCB soldering machines come with a 1-year warranty and provide remote technical support. Additionally, manufacturers can request custom fixtures or programming adjustments to meet their unique production requirements. This ensures the machine is fully optimized for each application, maximizing productivity and efficiency.

Conclusion

The SMD PCB soldering machine is more than just a tool—it’s a transformative technology for electronics manufacturing. By combining precision, automation, flexibility, and safety, it empowers manufacturers to produce high-quality PCBs faster and more efficiently than ever before.

From small prototype runs to high-volume production, these machines reduce reliance on manual labor, increase throughput, and ensure consistent, defect-free soldering. With easy operation, minimal maintenance, and robust safety features, they represent a smart investment for any modern electronics manufacturing facility.

Adopting an SMD PCB soldering machine is a step toward faster, safer, and more reliable PCB assembly, allowing manufacturers to stay competitive in a rapidly evolving industry.

✅ Quick Summary:
SMD PCB soldering machine handle all types of SMD components, feature automatic vision-based point recognition, deliver precise and reliable soldering, support multiple solder wire sizes, integrate with production lines, improve efficiency, are user-friendly, require minimal maintenance, and include safety features with a 1-year warranty and remote technical support.
