Benchtop 3 Axis Dispensing Robot

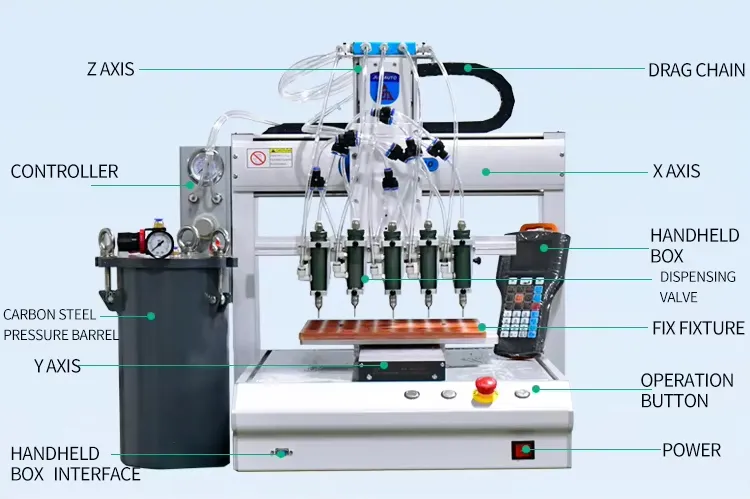

Benchtop 3 Axis Dispensing Robot with 5L Pressure Barrel 5 Heads
This high-precision 3 axis dispensing robot features a 5L pressure barrel and 5 heads for automatic paint and glue dispensing,supports a spit frequency of 600 times per minute.
Key Features
- 3-Axis Control System: Ensures precise positioning and smooth motion across X, Y, and Z axes.
- Multi-Head Dispensing (5 Heads): Enables simultaneous dispensing on multiple points, significantly improving efficiency.
- 5L Pressure Barrel: Large-capacity pressure tank ensures continuous glue supply without frequent refilling.
- User-Friendly Programming: Supports teach-pendant or PC-based path programming with intuitive interface.
- Flexible Patterns: Capable of dots, lines, arcs, circles, and complex trajectories.
- High Repeatability: ±0.03 mm positioning accuracy ensures stable and precise output.
- Compatible with Multiple Adhesives: Suitable for epoxy, UV glue, silicone, PU, and other industrial adhesives.
- Compact Benchtop Design: Space-saving structure ideal for R&D labs or small-scale production lines.
- Optional Vision System: For automatic position correction and enhanced accuracy.
- Durable Aluminum Body: Lightweight, corrosion-resistant, and thermally stable for long service life.
| Model | XH-D331 |
| Number of Controlled Axes | 3-axis |
| Effective Travel | X axis: 300mm / Y1 axis: 300mm / Z axis: 100mm |
| Transmission Mode | Double-track timing belt / Lead screw module |
| Power Source | Stepper motor / Servo motor |
| Top Speed | 500mm/sec |
| Repeat Accuracy | ±0.05mm |
| Maximum Load | X/Y/Z 5kg / 5kg / 3kg |
| Control System | Hand-held three-axis control system |
| File Storage Space | 400 sets of processing files, up to 9999 points in a single file |
| Power | AC110–250V 50–60Hz 350W |

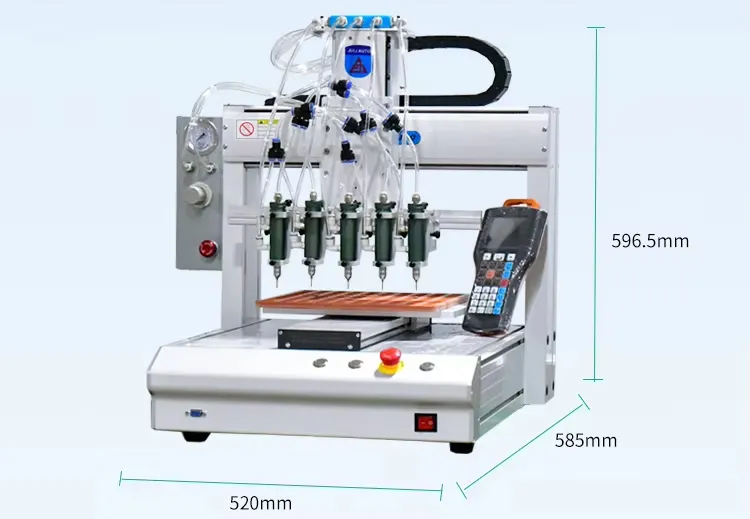

| Size (L × W × H) | 520mm × 585mm × 596mm |
| Weight | 44kg |
