Application of Thermal Conductive Adhesive Dispensing in Electronics Manufacturing

Thermal conductive adhesive is a critical material for thermal management in the production of electronic devices. Through dispensing processes, the adhesive is precisely deposited onto areas that require heat dissipation, thereby enhancing the overall thermal performance of the product. In modern electronics, increasing power density and shrinking form factors have made thermal challenges more pronounced, elevating the importance of thermal adhesive dispensing techniques.

1. Properties and Functions of Thermal Conductive Adhesive

Thermal conductive adhesive is a polymer composite material composed of thermally conductive fillers and organic binders. Its primary function is to fill the microscopic gaps between electronic components and heat sinks, ensuring rapid and efficient heat transfer from heat sources to cooling structures, thus preventing overheating‑induced damage. The adhesive offers excellent thermal conductivity, electrical insulation, and adhesion, while also conforming to complex geometries to deliver reliable thermal management solutions.

2. Principles of Thermal Conductive Adhesive Dispensing

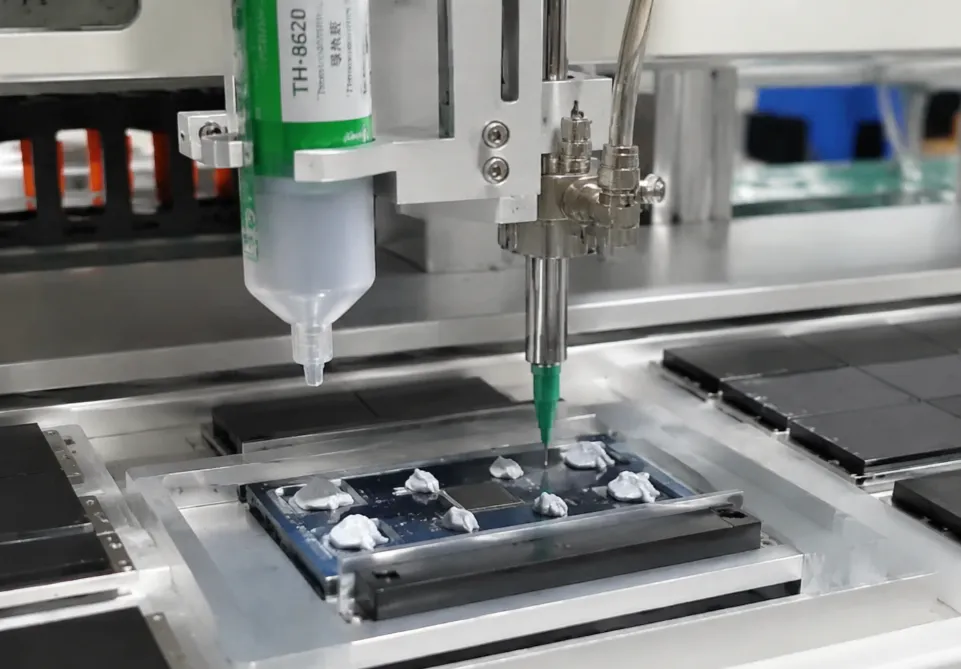

The dispensing process involves depositing a controlled volume of adhesive along a programmed path at defined speeds and pressures onto target areas. This operation is typically carried out by automated equipment to ensure consistent glue volume and coverage across every component. Key process parameters include controlling the fluidity of the adhesive, the shape and size of the deposited dots or lines, and the uniformity of the bond‑line thickness – all of which are essential for maximising thermal transfer efficiency.

3. Application Scenarios

3.1 Consumer Electronics

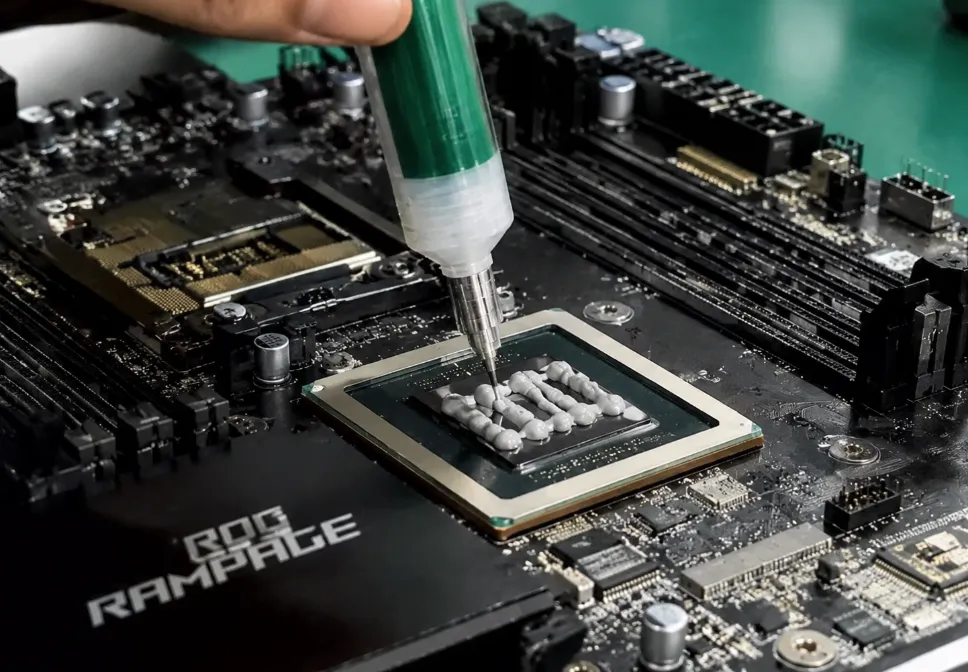

With the widespread adoption of smartphones, tablets, and other portable devices, internal components are becoming increasingly integrated and power‑dense. Thermal adhesive dispensing plays a vital role in their manufacturing – for instance, between the phone mid‑frame and the processor, or between camera modules and metal brackets. Precise dispensing ensures effective heat conduction, thereby boosting device performance and service life.

3.2 Automotive Electronics

The stability and reliability of automotive electronic systems directly impact vehicle safety. The rise of electric vehicles has placed stringent thermal demands on battery management systems (BMS), motor controllers, and other high‑power components. Thermal adhesive dispensing is widely deployed in these systems – applied to battery modules, power modules, and other critical areas – to achieve efficient heat dissipation and ensure system reliability under demanding operating conditions.

3.3 5G Communication Equipment

5G infrastructure generates substantial heat during operation; without prompt dissipation, performance degrades and hardware may fail. Thermal adhesive dispensing is applied primarily to high‑heat‑generating areas such as power amplifiers and RF modules. By filling minute interfacial gaps with precision‑deposited adhesive, the process significantly improves heat conduction and ensures long‑term, stable operation of base stations and antennas.

3.4 LED Lighting

As an energy‑efficient light source, LEDs are used extensively in general lighting. However, LED chips produce significant heat that, if not managed, can reduce luminous efficacy and shorten lifespan. Thermal adhesive dispensing is a key step in LED thermal management – applying adhesive between the chip and the heatsink rapidly transfers heat away, preserving the stability and durability of the luminaire.

Looking Ahead – Industry 4.0 and Smart Dispensing

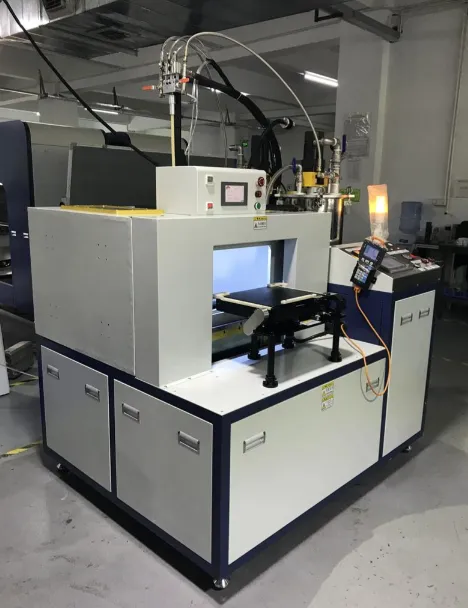

Against the backdrop of Industry 4.0, thermal adhesive dispensing is moving toward greater automation and intelligence. By integrating artificial intelligence, big data analytics, and real‑time process monitoring, future dispensing systems will be capable of adaptive parameter adjustment, online quality inspection, and intelligent fault diagnosis. This evolution will substantially boost production efficiency and product quality, meeting the ever‑increasing demands of advanced electronics manufacturing.
