Core Components of a Dispensing System

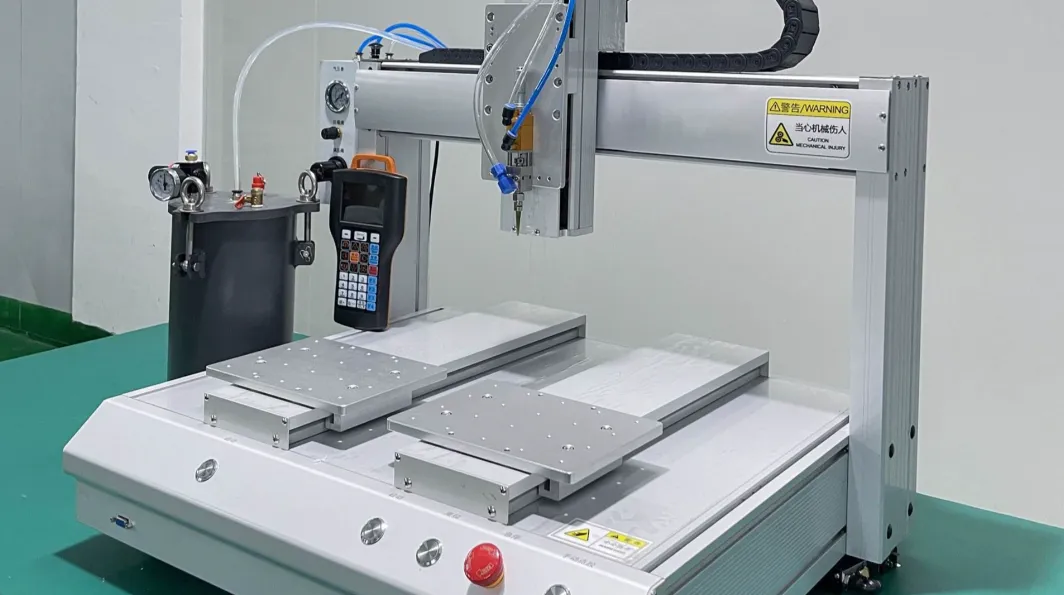

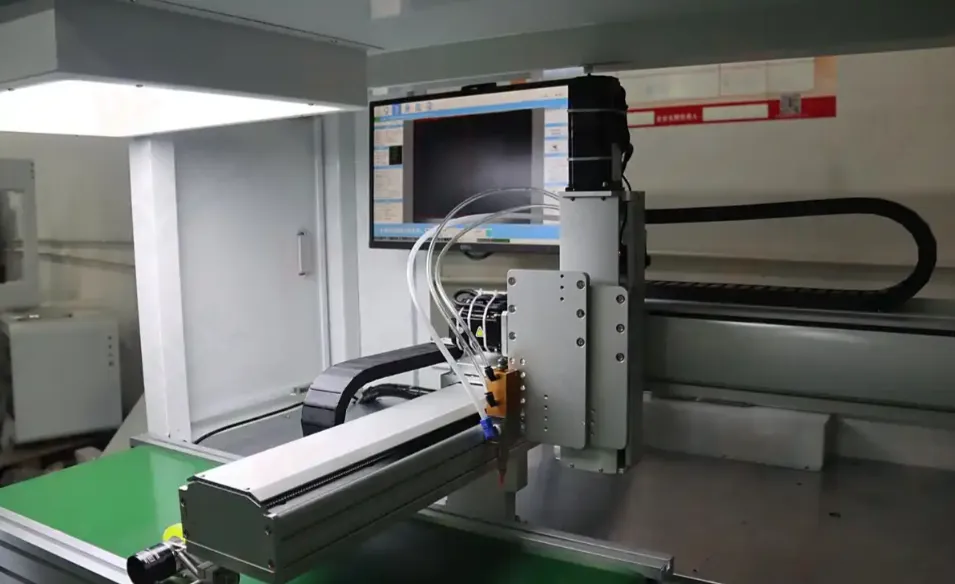

At its heart, an automatic dispensing system integrates four essential elements. The dispensing valve—whether pneumatic, jetting, or positive-displacement—controls fluid flow with micron-level precision. The fluid reservoir and supply mechanism (syringe, cartridge, or pressure tank) deliver material to the valve under regulated pressure. The motion platform, typically a Cartesian gantry, articulated robot, or custom XYZ stage, positions the valve over the workpiece. Finally, the control unit—a programmable logic controller or dedicated software—orchestrates timing, pressure, path speed, and valve actuation, often interfacing with vision systems for alignment and inspection.
Types of Dispensing Technologies
Choosing the right valve technology is paramount. Time-pressure systems are the simplest and most cost-effective, using pulsed air to extrude fluid; they suit low-to-medium viscosity materials but are sensitive to temperature and pressure fluctuations. Auger/rotary screw valves employ a precision screw to displace material volumetrically, offering excellent repeatability for pastes and high-viscosity silicones. Jetting valves are the fastest, propelling discrete dots or lines without Z-axis movement—ideal for high-speed SMT assembly and underfill. Piezoelectric valves take jetting further, achieving frequencies exceeding 1,000 Hz for micro-dispensing in semiconductor packaging.
Key Advantages Over Manual Dispensing
Automation delivers quantifiable returns. First, consistency—the system applies the same bead volume and pattern on every cycle, eliminating human error and rework. Second, speed—automated paths run at optimized velocities, often reducing cycle times by 50–80%. Third, material savings—precise shot control reduces over-application by up to 30%, directly lowering consumable costs. Fourth, traceability—modern systems log every dispense parameter, supporting ISO and FDA compliance. Finally, flexibility—quick-change valve heads and programmable recipes allow rapid changeovers between products, making automation viable for both high-volume and mixed-low-volume production.
Common Applications Across Industries
Automatic dispensers are ubiquitous. In automotive electronics, they apply thermal paste on ECUs and gasketing for battery packs. In **medical device assembly**, they deposit UV-curable adhesives for catheter bonds and microliter droplets for diagnostic cartridges. Consumer electronics rely on them for display edge sealing, microphone mesh bonding, and camera module underfill. Aerospace and defenseuse them for structural bonding of composites and potted electronics. Even **general industrial** sectors—LED lighting, appliance seals, and filter assembly—benefit from their reliability.
Selecting the Right System
No single configuration fits all. Start with fluid properties: viscosity, thixotropy, pot life, and cure chemistry. High-filler materials may require ceramic screws to resist abrasion. Next, define application parameters: dot size, line width, and throughput. Jetting suits dots < 0.5 mm; auger valves handle thicker lines. Then evaluate **environmental factors**—cleanroom requirements, temperature control, and fume extraction. Budgetary considerations should include not just capital cost but also maintenance, training, and spare parts. Partner with a reputable integrator who can perform dispense testing with your actual fluid and substrate—this is non-negotiable.
Maintenance and Troubleshooting
Even the best systems demand routine care. Daily checks include nozzle cleaning, pressure verification, and wiping excess material. Weekly, inspect seals, tubing, and filter elements for wear or clogging. Monthly, calibrate the vision system and run a dispense-weight test against a precision scale. Common pitfalls—air bubbles, nozzle drying, and valve stiction—are mitigated by using degassed materials, anti-drip features, and proper idle purging. Maintain a spare parts kit (nozzles, diaphragms, O-rings) to minimize downtime. Document every maintenance event; this history is invaluable for predictive servicing.
Automatic glue dispensing systems are not merely optional upgrades—they are strategic investments that drive quality, efficiency, and competitive advantage. By understanding the core technologies, matching them to your specific process, and committing to disciplined maintenance, manufacturers can achieve near-zero-defect bonding operations. As Industry 4.0 advances, expect smarter dispensers with integrated force sensing, AI-driven process optimization, and real-time viscosity adjustment. The future of adhesion is automated—and this guide gives you the foundation to embrace it with confidence.
