3 Axis Automatic PCB Board Soldering Machine
3 Axis Automatic PCB Board Soldering Machine
This automatic pcb board soldering machine features dual workstations for increased throughput and programmable 3-axis soldering. Supports typical PCB sizes, with fast setup for board changeover and batch jobs. The pcb soldering machine are suitable for medium-batch and high-mix environments (SMT rework, DIP/through-hole soldering, and more), and find application in manufacturing plants, PCB assembly, and sectors like LED, mobile phones, and telecommunication electronics.
Key Features

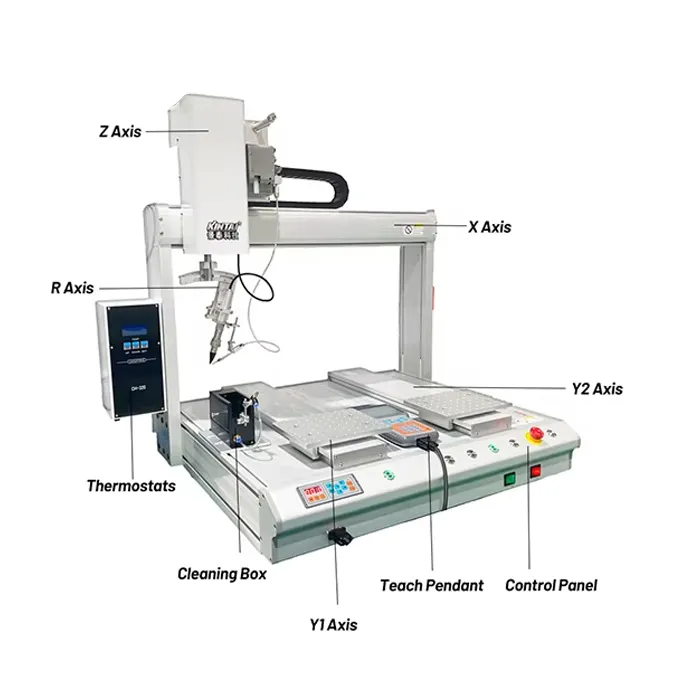

- 3-Axis Motion Control – Ensures accurate positioning and smooth soldering operation.
- Dual Stations Design – Allows for parallel processing of PCBs, maximizing throughput and reducing idle time.
- High Precision Soldering – Stable temperature and solder wire feeding guarantee consistent solder quality.Auto tip clean, the interval and frequency can be set flexibly according to the Soldering products.
- Teach Pendant Programming – Easy-to-use interface allows quick path teaching, editing, and multi-point soldering setup.
- Temperature Control System – Intelligent heating maintains a stable soldering temperature.
- Compact Desktop Design – Space-saving yet powerful solution for industrial applications.
- Wide Compatibility – Supports through-hole components, connectors, wires, and PCB assemblies.
| Model | XH-AS300 | XH-AS400 |
|---|---|---|
| Working area X/Y/Z(mm) | 300*300*100 | 400*400*100 |
| Max loading | Y-axis: 10kg Z-axis: 4kg | |
| Moving speed(mm/sec) XY/Z | XY: 500 Z: 300 | |
| Accuracy precision | ±0.01~0.03mm | |
| Programming mode | Teach pendant | |

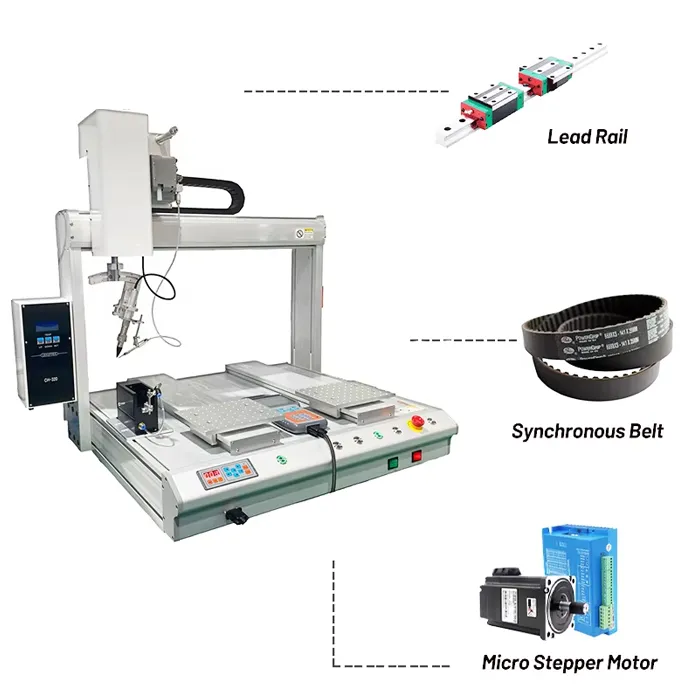

| Drive mode | Stepping motor+straight guide / servo motor+ball screw (optional) | |
| Hf lead-free soldering table | 1 set (multiple welding heads can be added as appropriate) | |
| Automatic tin feeder | 1 set | |
| Cleaning cylinder | 1 set | |
| Temperature control system | Automatic temperature compensation, abnormal temperature alarm function | |
| Cleaning method | Air blowing cleaning | |
| Applicable to tin wire range outside diameter | φ0.3~1.6mm | |
| Input power | AC220V (internal switch conversion) | |
| Operating temperature | 5~40°C | |
| Operating humidity | 20~90% | |
| Dimension W*D*H(mm) | 485*545*750 | 580*630*750 |
| Weight (kg) | around 70kg | around 85kg |
