Automated Soldering Machine with Three-Axis

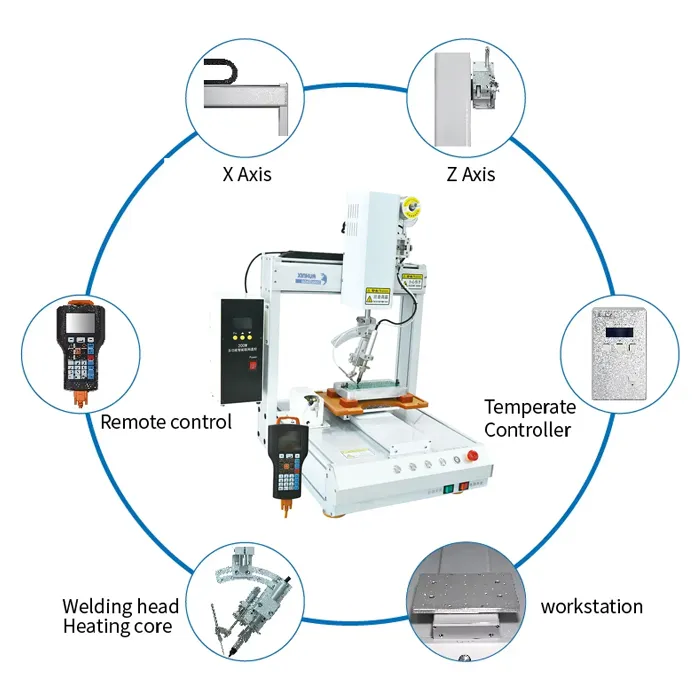

Three Axis Automated Soldering Machine(Single-Head /Single Station)

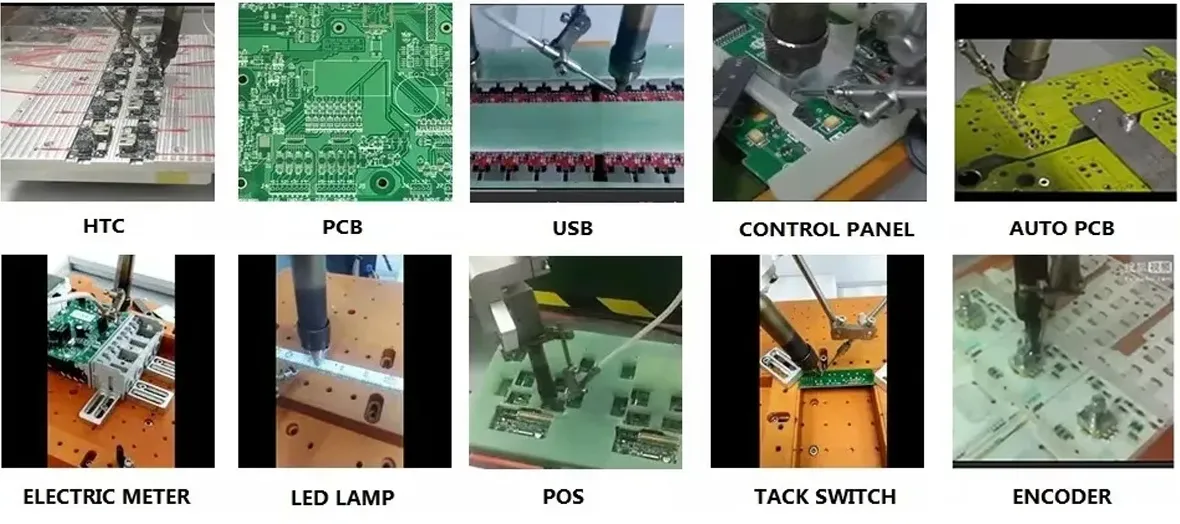

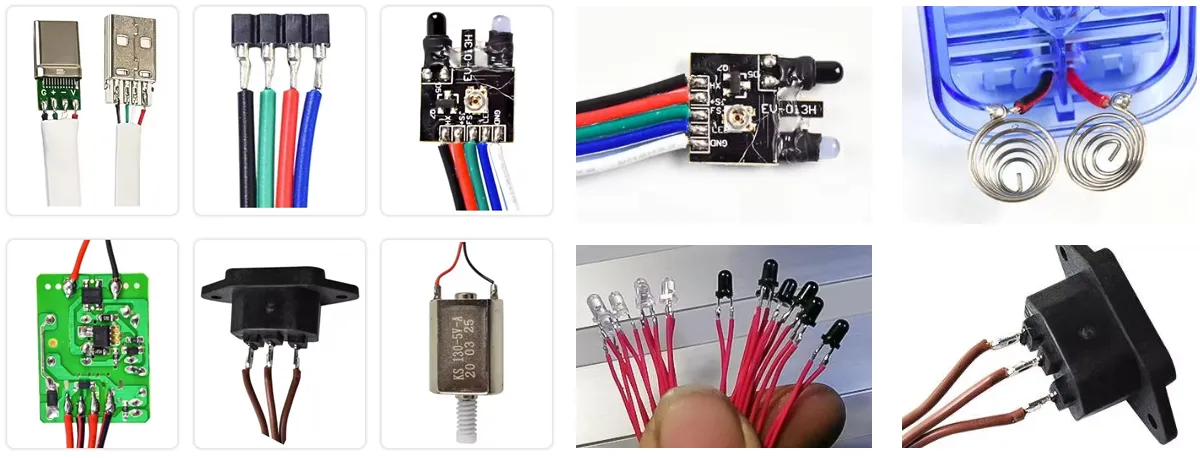

This automated soldering machine is suitable for automatic soldering of automotive electronics, digital electronics, LCD monitors, PCB, connectors, RJ/45 interfaces, FFC cables, FPCB boards, computer boards, cables, speakers, wires, HDMI interfaces, LED lights, toys and other products.
Feature:
1.Desktop type, can be placed on the production line.
2.Double Y axis type(Optional), automatic working alternatively, saving the time of placing object.
3.Flexible and diverse soldering method, with spot welding, drag welding (pull welding) and other functions.
4.The mechanical arm of the soldering machine is made of aluminum, no deformation, no rust, stable operation.

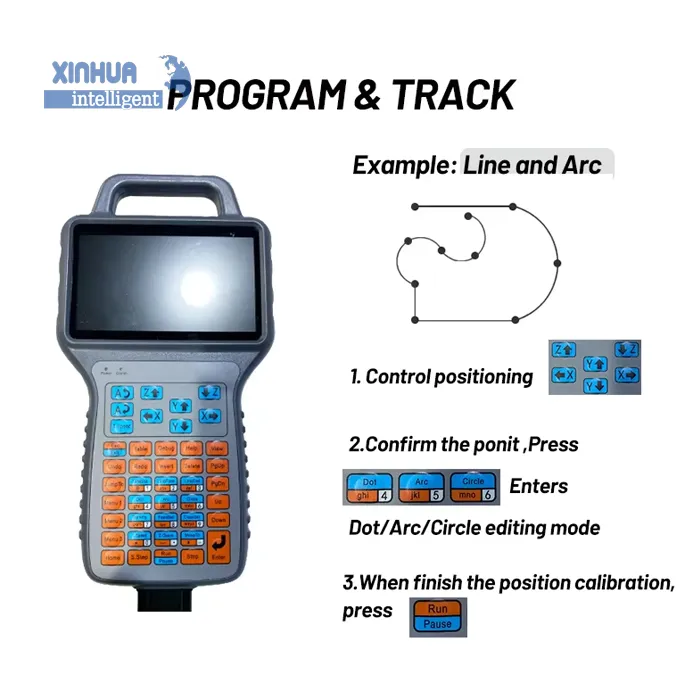

5.Device writing work program can perform point-to-point, block-to-block copying and shorten programming time.
6.The automated soldering machine has an automatic cleaning function, which stabilizes the quality of solder processing and extends the service life of the soldering iron tip to a certain extent.
7.Multi-axis linkage manipulators, all using precision stepper motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
Feature:
1.Desktop type, can be placed on the production line.
2.Double Y axis type(Optional), automatic working alternatively, saving the time of placing object.
3.Flexible and diverse soldering method, with spot welding, drag welding (pull welding) and other functions.
4.The mechanical arm of the soldering machine is made of aluminum, no deformation, no rust, stable operation.
5.Device writing work program can perform point-to-point, block-to-block copying and shorten programming time.
6.The automated soldering machine has an automatic cleaning function, which stabilizes the quality of solder processing and extends the service life of the soldering iron tip to a certain extent.
7.Multi-axis linkage manipulators, all using precision stepper motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
| Model | XH-T3311 | XH-T4411 | XH-T5511 | XH-T53311 |
|---|---|---|---|---|
| Stroke X | 300mm | 400mm | 500mm | 500mm |
| Stroke Y1 | 300mm | 400mm | 500mm | 300mm |
| Stroke Y2 | no | no | no | 300mm |
| Stroke Z | 100mm | 100mm | 100mm | 100mm |
| Rotary R axis | with R axis (optional no R axis) | |||
| Rated speed | 500mm/s (X-Y-Z), Max: 1000mm/s | |||
| Tin thickness | 0.3-1.6mm | |||
| Temperature | normal—500℃ | |||
| Heating | 150w, 5 seconds to 300℃ | |||
| Drive | Precision stepping motor/servo motor + synchronous belt/ball screw | |||
| Motion mode | Point to point; line; circle | |||
| Positioning Accuracy | ±0.02(mm) | |||
| Dimension | 580×520×603mm | 580×620×603mm | 780×720×603mm | 580×720×603mm |
| Weight | 60kg | 70kg | 80kg | 80kg |
