Semi Automatic Potting Machine

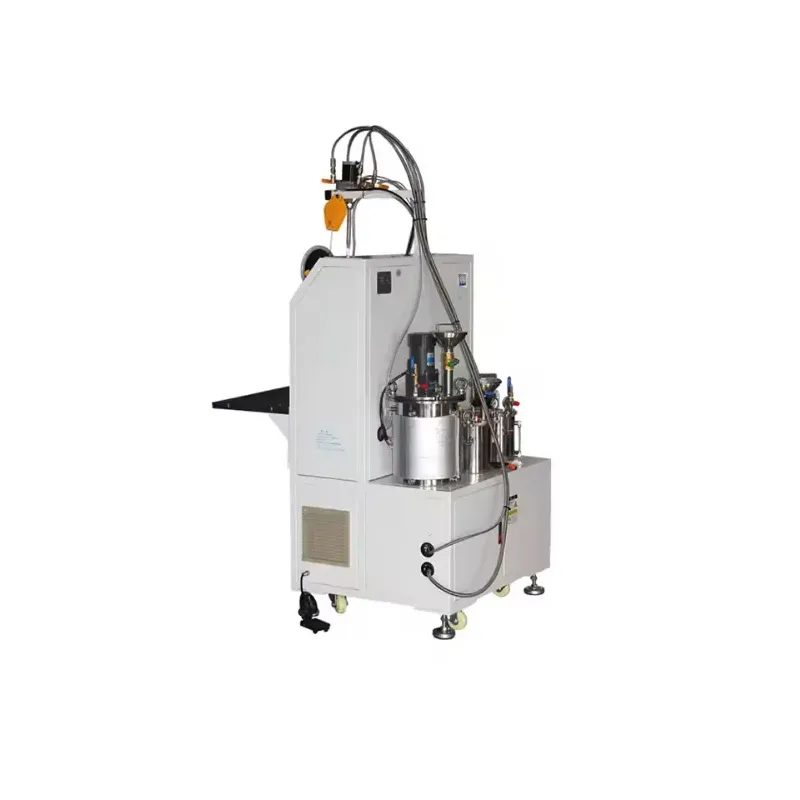

Semi Automatic Potting Machine XH-SY920
The semi-automatic potting machine uses a high-precision metering pump for accurate glue control, featuring wear resistance, corrosion resistance, and precise proportioning.
Adjustable ratio from 1:1 to 100:1, suitable for polyurethane, silicone, AB epoxy resin, and other AB glues.
Easy operation: pour AB glue into the tanks, set the program on the PLC touch screen, press start, and the machine automatically dispenses with accurate dosage, saving glue.
Optional functions: mixing device to prevent sedimentation, constant temperature system, and liquid level sensor with alarm reminder.
Easy cleaning: A and B glue are stored separately; only the mixing pipe needs cleaning, which can be soaked in cleaning agent when not in use.
Adjustable ratio from 1:1 to 100:1, suitable for polyurethane, silicone, AB epoxy resin, and other AB glues.
Easy operation: pour AB glue into the tanks, set the program on the PLC touch screen, press start, and the machine automatically dispenses with accurate dosage, saving glue.
Optional functions: mixing device to prevent sedimentation, constant temperature system, and liquid level sensor with alarm reminder.
Easy cleaning: A and B glue are stored separately; only the mixing pipe needs cleaning, which can be soaked in cleaning agent when not in use.
This semi automatic potting machine is designed for precise and efficient dispensing of two-component materials, including polyurethane, silicone, and AB epoxy resin. It provides accurate mixing ratios and consistent potting performance, making it ideal for electronics, PCB, LED, and other industrial applications. The potting machine balances automation with user control, offering flexibility, reliability, and cost efficiency.
| Models | XH-SY920 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (adjustable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Pressure barrel | 2 stainless steel vacuum storage barrels and 1 cleaning barrel (the volume can be customized according to customer requirements) |
| Mixed mode | Dynamic / static mixing |
| Operating system | PLC + touch screen |
| Operation mode | Foot switch + start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be used selectively) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Mixing device | Double layer mixing / single layer mixing (optional) |
| Input power | AC220V 50-60Hz |
| Operating humidity | 20-90% no condensation |
| Overall dimension | Approx. L900*W1400*H2000mm (for reference only, subject to the actual product) |
| Weight | around 150kg |

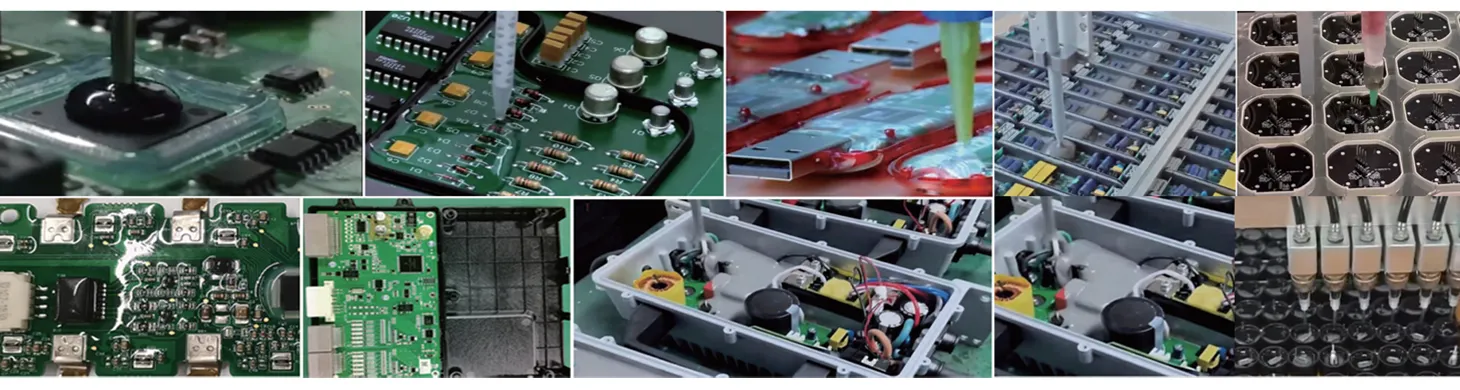

Applications
This semi-automatic AB potting machine is widely used in:
-
Electronic components and PCB potting
-
LED drivers, power supplies, and lighting modules
-
Sensors, transformers, and relays
-
Automotive and communication products
-
Waterproof and dustproof encapsulation of devices
