Automated Vacuum Glue Potting Machine

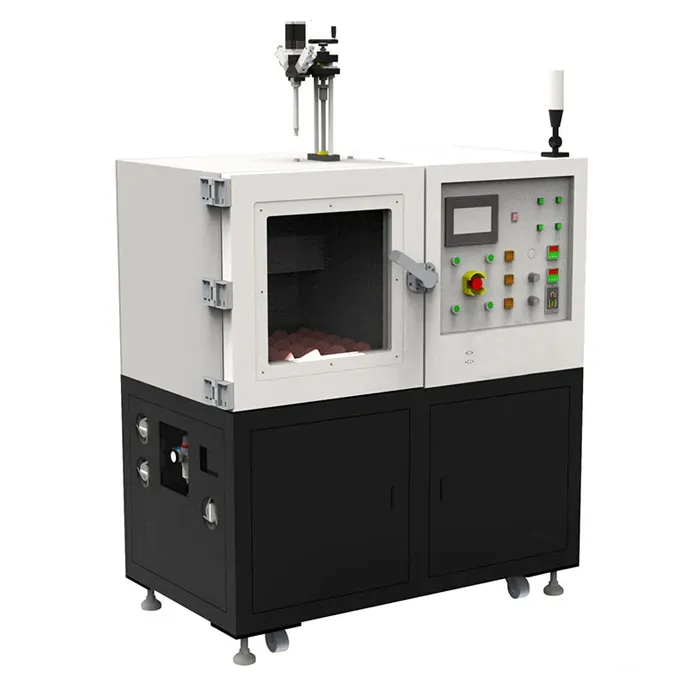

Automated Double Liquid Vacuum Glue Potting Machine XH-SR4401
The automated double liquid vacuum glue potting machine operates within a vacuum chamber where the AB two-component liquids are precisely mixed in a set ratio and then dispensed. This process significantly enhances adhesive quality by minimizing bubble formation, achieving high automation, reducing process time, and boosting production efficiency. This automatic vacuum potting machine is designed for use with epoxy resin, polyurethane, silicone rubber, and other AB two-component fluid materials, making it ideal for potting products that have complex structures and require high-quality finishes.
Key Features
- Vacuum potting for bubble-free results
- Accurate A/B mixing and metering
- Compatible with epoxy, resin,PU, silicone, etc.
- PLC control with easy operation
- Adjustable glue potting parameters and patterns
- Efficient for medium to large batches
| Models | XH-SR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Storage tank | 2 stainless steel vacuum storage barrels, 1 cleaning barrel (the volume can be customized according to customer requirements) |
| Mixed mode | Dynamic/static hybrid (optional) |
| Operating system | PLC PC/teaching pendant |
| Operation mode | Foot switch + start switch |
| Measurement mode | 2 independent brand high-precision metering pumps (gear pump/screw pump optional) |
| Mixing device | Double layer mixing/single layer mixing (optional) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Input power | AC220V 50-60Hz |
| Operating humidity | 20-90% no condensation |
| Overall dimension | W1960*L900*H1900mm (for reference only, subject to actual product) |
| Weight | Around 1500kg |

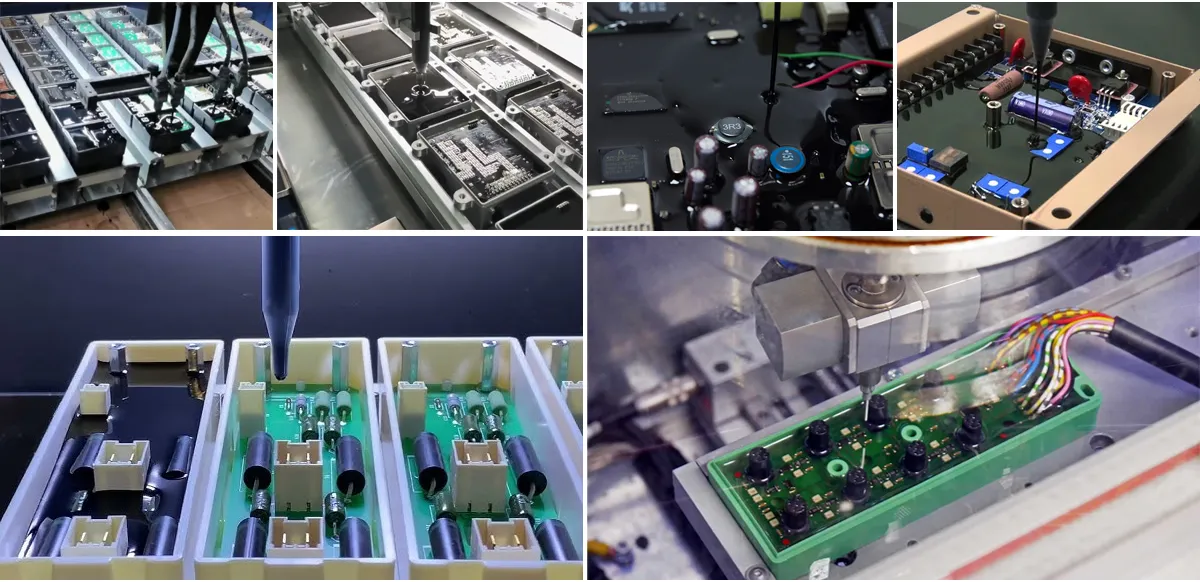

The automated vacuum potting machine is widely used in industries that demand reliable sealing, insulation, and protection:Electronics & PCB,Automotive Industry,LED & Lighting,Renewable Energy,Industrial Equipment,Communication equipment and more.
