Two Component Potting Dispensing Equipment

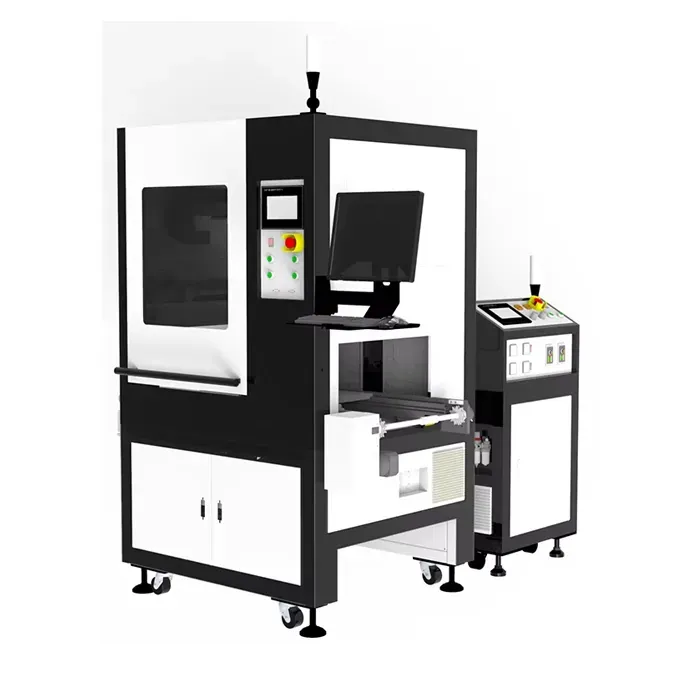

Online Two Component Potting Dispensing Equipment XH-SY540
The online two component potting dispensing equipment accurately mixes and dispenses adhesives in ratios ranging from 1:1 to 20:1, using motor-controlled metering pumps and a PCL-operated control system. Designed for seamless integration with automated production lines, this potting compound dispenser works with a 3-axis potting platform to detect incoming products and perform fully automatic potting. It ensures precise, efficient, and consistent dispensing for high-volume manufacturing.
| Models | XH-SY540 |
|---|---|
| Working range | X500*Y400*Z120mm |
| Maximum load | X/Y: 20kg; Z: 8KG |
| Moving speed | X/Y: ≤ 800mm/s; Z: ≤ 300mm/s |
| Motion accuracy | ±0.01mm |
| Dispensing accuracy | ≤ ±0.03mm |
| Glue ratio | 1:1~20:1 (customizable) |
| Vision system | Optional |
| Pipeline width | 100~500mm |
| Transmission mode | Timing belt / speed doubling chain / plug-in chain (optional) |
| Incoming induction | Optical fiber / photoelectric |
| Transmission mode | Servo motor + ball screw |
| Measurement mode | Metering pump |
| Mixed mode | Dynamic mixing / static mixing (optional) |
| Glue storage mode | 2 high precision vacuum pressure barrels + 1 cleaning barrel |
| Operation mode | PC with vision; teaching pendant without vision |
| Anti-curing function | Provided |
| Input power | AC220V 50–60Hz |
| Overall dimension | Approx. W1300*L900*H1600mm (subject to actual product) |
| Weight | Approx. 1500kg |

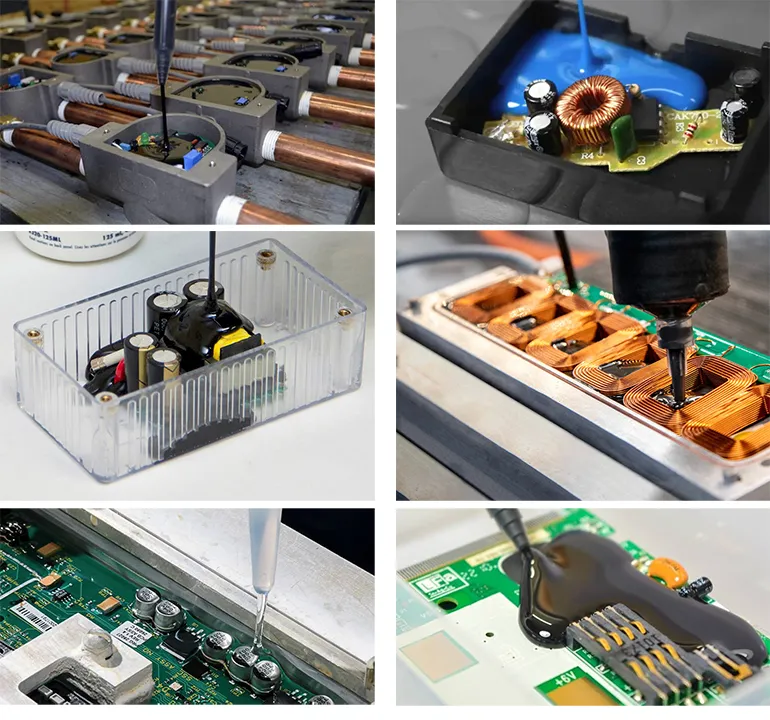

Applications:
- Electronics encapsulation and protection
- PCB and circuit board potting
- LED module potting
- Sensor and motor sealing
- Automotive electronic components
- Waterproofing and insulation of electrical devices
- Epoxy, polyurethane, and silicone adhesive dispensing
