Automatic Screw Driving Machine

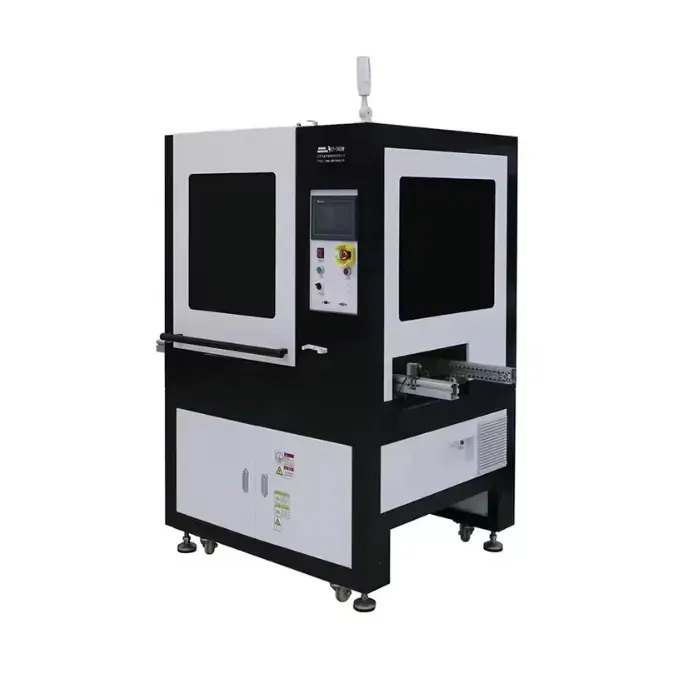

Online Automatic Screw Driving Machine XH-SC3400
This Automatic Screw Driving Machine is designed according to the customer's assembly line operation requirements and can be directly integrated with existing production lines. It eliminates the need for manual loading and unloading, achieving fully automated and unattended operation.
Typical applications include screw driving for heat sink modules, digital products, lighting fixtures, toys, and hardware components.
Typical applications include screw driving for heat sink modules, digital products, lighting fixtures, toys, and hardware components.
| Models | XH-SC3400 |
|---|---|
| Working area (X*Y*Z*R mm) | 400*400*120mm |
| Max loading | Y/10kg; Z/8kg |
| Moving speed | X/Y: ≤800mm/s; Z: ≤300mm/s |
| Repeatability | ±0.01mm |
| Screen | Teach pendant / PC |
| Motor system | High precision servo motor + ball screw |
| Visual positioning system | Optional |
| Transmission method | Chain drive, adjustable range of 50~400mm |
| Program display |
Non-visual mode: teach pendant Visual mode: PC |
| Full-voltage | AC220V 50/60Hz |
| Operating temperature | 5–40°C |
| Operating humidity | 20–90%, no condensation |
| Dimension (W*D*H mm) | 1150*893*1350 |
| Weight | Around 500kg |
| Screw Size | M1.0 – M6.0 (customizable) |
| Applicable Screws | all screws type (customized types) |
