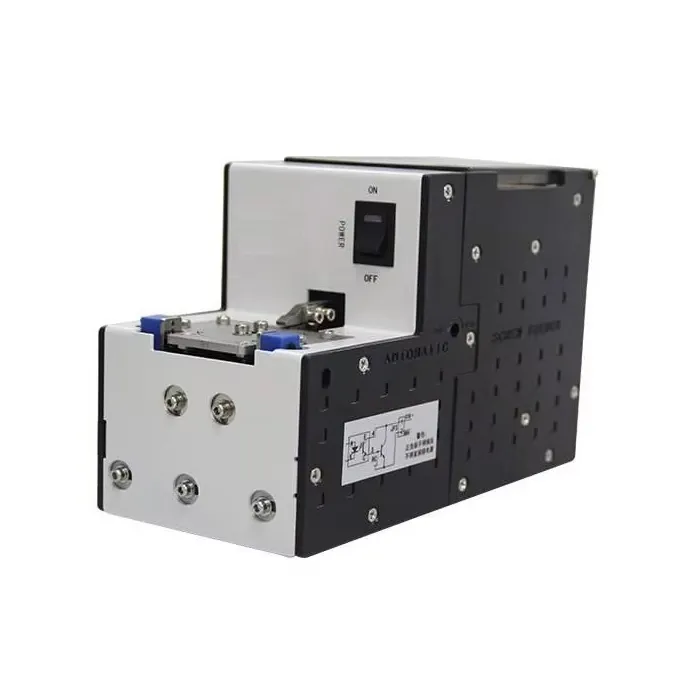

automatic screw feeding machine

Automatic Screw Feeder Machine XH-S2620

This Automatic Screw Feeder Machine is suitable for M1–M5 screws. According to the size of the guide rail, replace the distribution turntable/plate (which can be customized according to the needs of customers). The universal screw can be realized by changing the turntable through the speed regulating conveying track.

Features:
1. Portable and flexible, light in weight and small in size
2. Adjustable feeding speed
3. Flexible feeding rail, easy adjustment
4. No dithering, no jam, stable feeding and low noise
5. Available information output, can work with automatic screwdriver machine or mechanical arm, repeated positioning accuracy ±0.02

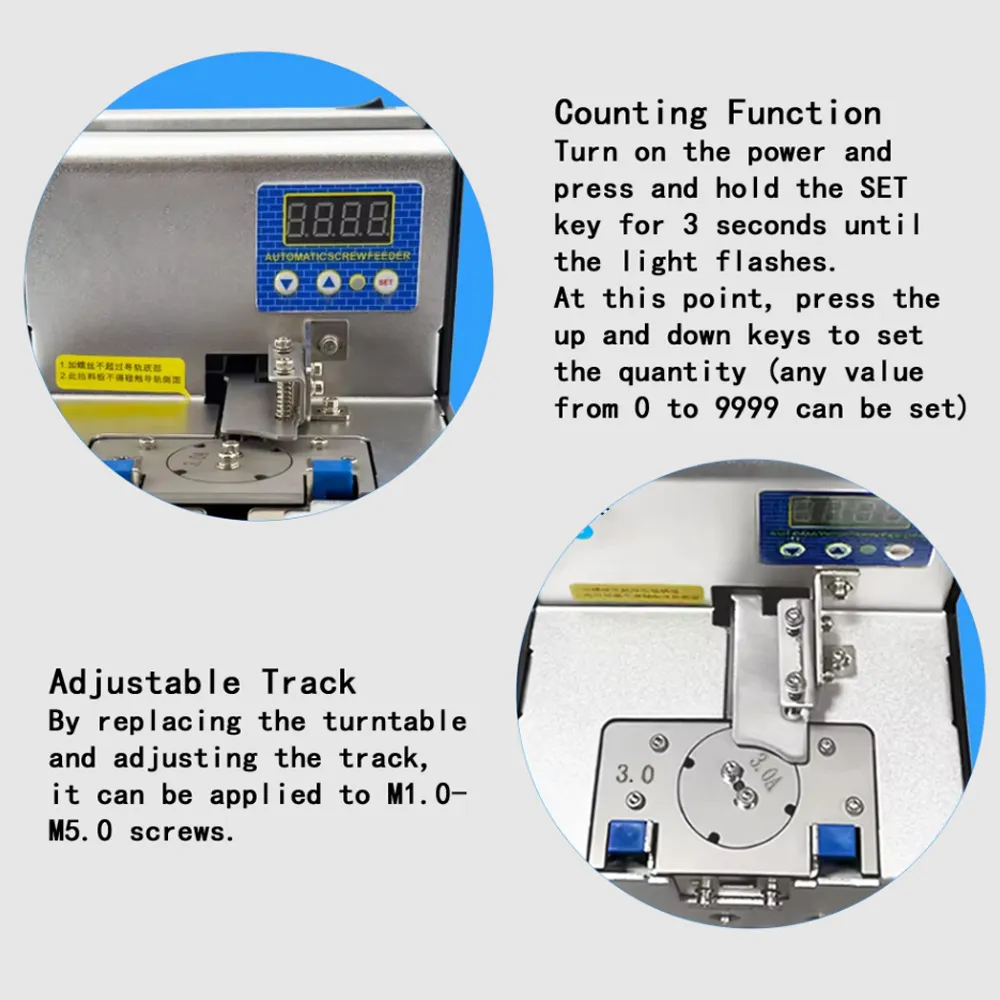

6. screw counting and failure alert function
GET A QUOTE
  • Description
This automatic screw feeder features efficient and accurate screw feeding, precise positioning with ±0.01mm accuracy, and wide compatibility with screws of different diameters, lengths, and head shapes. Its stable and durable design ensures minimal failures, while the user-friendly interface requires no complex training. The turntable design enhances production efficiency, making it ideal for electronics assembly.

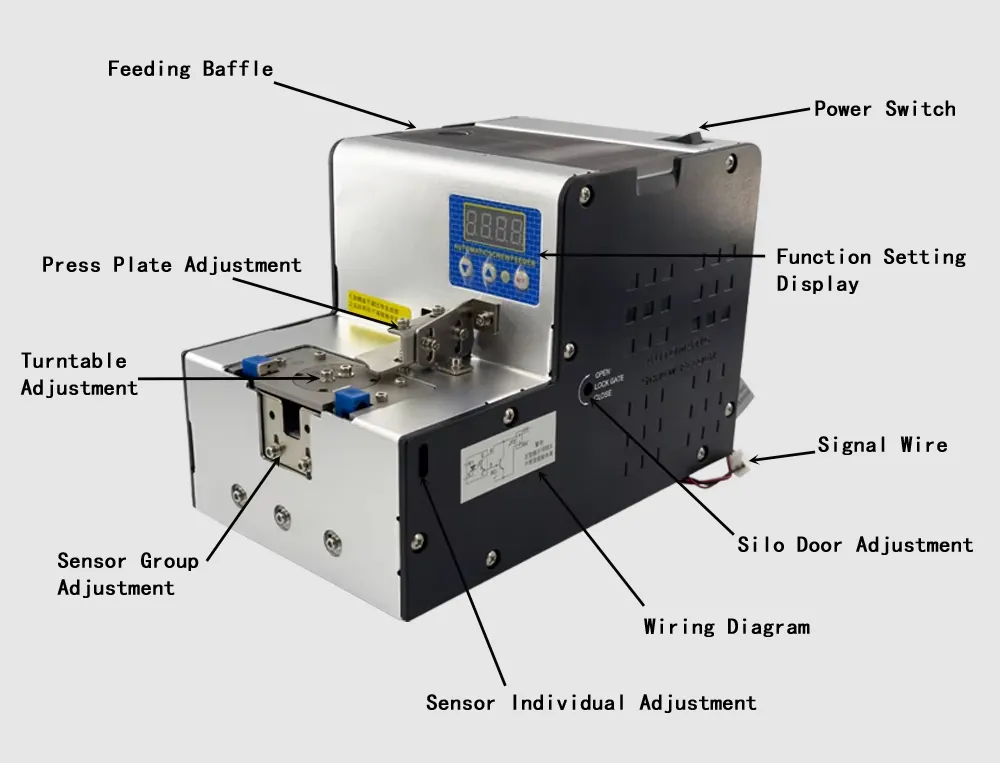

screw feeding machine auto screw feeder

Screw Length 1~12mm
Output Screw Speed About 1 second per screw (±0.3 seconds)
Voltage DC 15V
Input AC 220V~240V 50Hz
Output DC 15V 1.5A
Dimensions L200 × W125 × H150mm
Weight About 3.5kg

FAQs

  • Why doesn’t the screw feeding machine run after power-on?

    Possible Reasons:
    - Too many screws in the hopper, exceeding the guide rail position, preventing the brush and guide rail from operating normally.
    - Infrared sensor is faulty or blocked by foreign objects.

    Solutions:
    - Remove some screws to allow the guide rail to move freely.
    - Remove any obstruction in front of the infrared sensor.
    - If the problem persists, return the screw feeder machine to the factory for inspection.

  • What should I do if the screws cannot slide out of the track?

    Possible Reasons:
    - The track gap does not match the screws.
    - The gate opening is too small.
    - The vibration motor is malfunctioning.
    - Screws are lying across or stuck in the middle of the track.

    Solutions:
    - Adjust the gap between the left and right plates of the track.
    - Adjust the upper and lower dimensions of the gate opening.
    - Replace the vibration motor if faulty.
    - Lower the brush in the hopper to sweep screws lying across the track.
    - Loosen the fixing screws of the right track and narrow the track width if needed.

  • Can the auto screw feeder handle different screw specifications?

    Yes. The auto screw feeder can accommodate screws of various diameters, lengths, and head shapes, meeting a wide range of production requirements.
