Handheld Automatic Screwdriver Machine

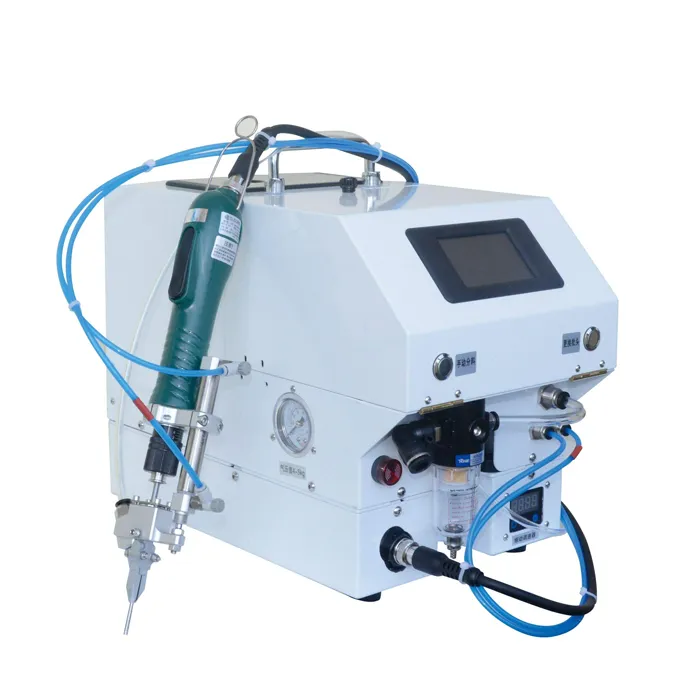

Handheld Automatic Screwdriver Machine XH-SC50-Z
The Handheld automatic screwdriver machine features rotary feeding, ensuring small volume, low noise, and lightweight design. It delivers high efficiency with 1 screw per second, automatic screw arrangement, and sensor-controlled feeding to prevent jams. The automatic screw driving machine suitable for M1-M5 screws and deep screw locking under 100mm, it supports automated production, saving manpower. The main components use high-quality materials and imported electronic parts for stability and durability.
The auto screwdriver machine suitable for digital electronics, small home appliances, power switches, lamps, LEDs, toys, speakers, small fans, VR, hardware and other products manufacture.
The auto screwdriver machine suitable for digital electronics, small home appliances, power switches, lamps, LEDs, toys, speakers, small fans, VR, hardware and other products manufacture.

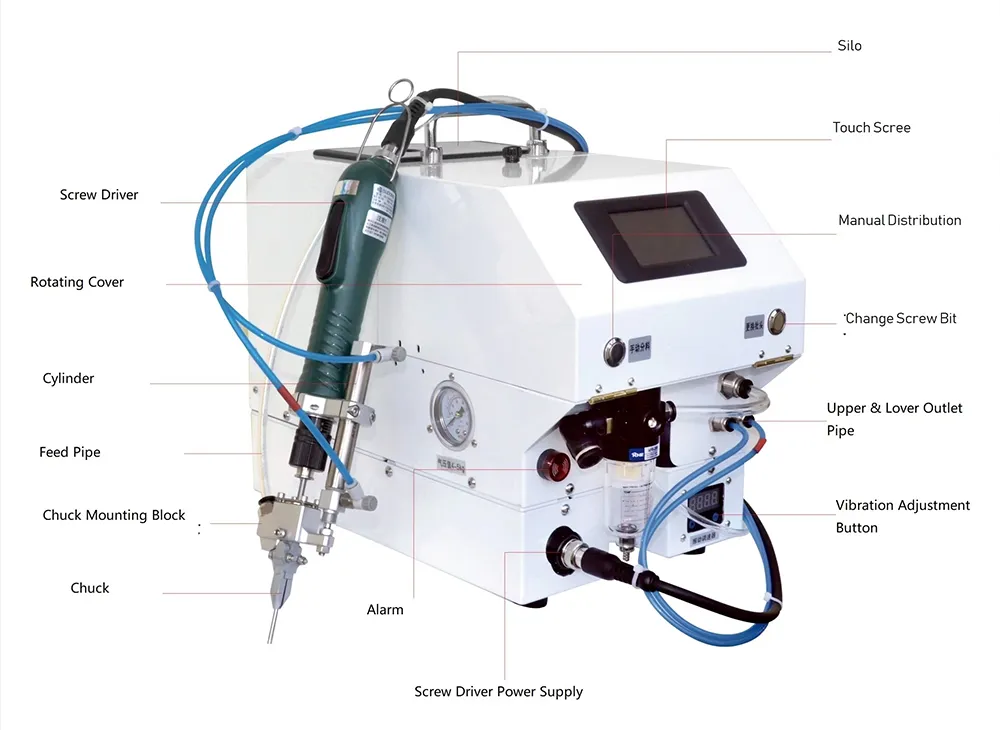

1. The automatic screwdriver machine adopts rotary feeding, with small volume, low noise and light weight. It can be stored on the working platform.
2. Screws are automatically arranged, selected, supplied and fed, and there will be an automatic alarm if there is no material.
3. Sensor controlled during automatic feeding, supplied one by one, no repeated feeding.
4. To avoid material jams, no feeding when slippery or less torque during locking process.
5. Good stability, it can be solved within few seconds by any person even if jams happened.
6. High efficiency, 1 second for 1 screw.
7. The auto screwdriver machine can help manufacture to perform automated production with high efficiency, and save manpower.
8. The automatic screw driving machine main components are made of high quality metalogial materials undergoing special treatments. The electronic components are imported to make sure that the quality can meet your requirements.
2. Screws are automatically arranged, selected, supplied and fed, and there will be an automatic alarm if there is no material.
3. Sensor controlled during automatic feeding, supplied one by one, no repeated feeding.
4. To avoid material jams, no feeding when slippery or less torque during locking process.
5. Good stability, it can be solved within few seconds by any person even if jams happened.
6. High efficiency, 1 second for 1 screw.
7. The auto screwdriver machine can help manufacture to perform automated production with high efficiency, and save manpower.
8. The automatic screw driving machine main components are made of high quality metalogial materials undergoing special treatments. The electronic components are imported to make sure that the quality can meet your requirements.
| Structure | Weight | 12KG |
| Dimension | L440*W220*H280(mm) | |
| Power Supply | AC 220V 50HZ | |
| Power | 60W | |
| Gas Source | >0.5MPa | |
| Silo Capacity | Standard Screw 5000PCS | |
| Control instructions | Host program control | PLC Control |
| HMI | Display and adjust various parameters, with counting function | |
| Start Mode | Manual | |
| Warning | Light flash & buzzer whistle | |
| Application | Products | Screw hole depth <100mm |

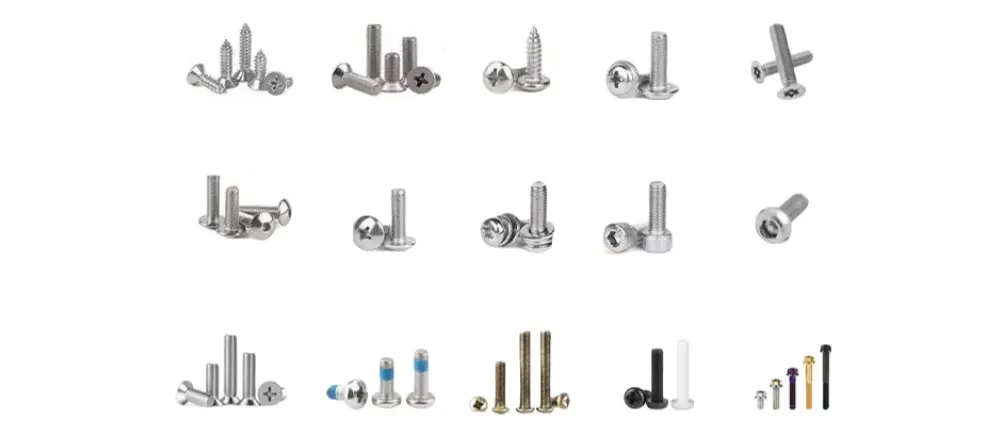

| Screw Dimension |
Screw length >1.5 times nut diameter Iron screw M1.0-M5.0 Nut diameter 2.5-7.0mm Screw length <16mm |
|
| Universal Range | Difference nut tolerance 0.3mm |
FAQs
-
What types of screws can this machine handle?The handheld automatic screw driver machine supports screws ranging from M1 to M6. Customization screw types.
-
Is the torque adjustable?Yes, the automatic screwdriver robot features adjustable torque settings to suit different materials and screw sizes.
-
How does the automatic screw feeding system work?The screws are loaded into a magazine that automatically feeds each screw to the driver tip, reducing manual handling and speeding up assembly.
-
Can the machine operate continuously on a production line?Yes, it is designed for industrial use and can handle continuous operation with minimal maintenance.
-
Can it be used for both industrial and household applications?Yes, the automatic screwdriver machine is versatile enough for professional assembly lines as well as DIY or household projects.
