Floor Type 3-Station Auto Screw Tightening Machine

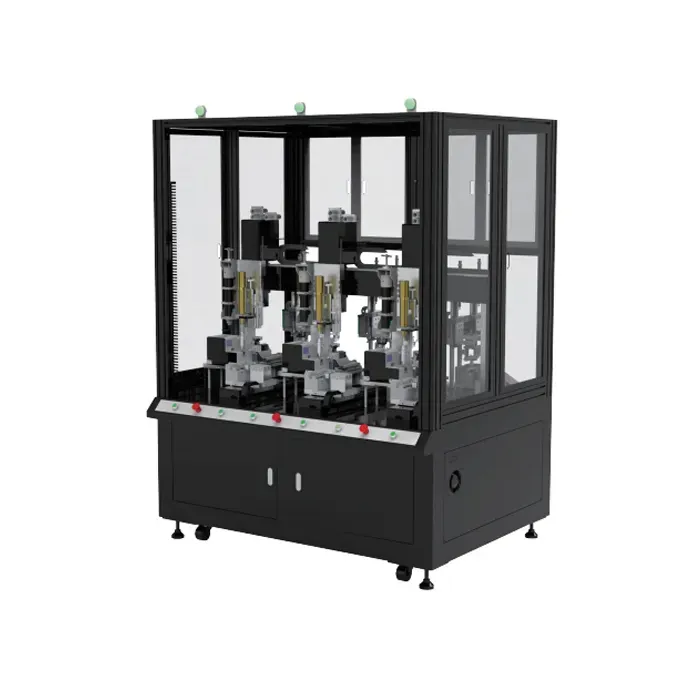

Floor Type 3-Station Auto Screw Tightening Machine XH-AS373-T
This Auto Screw Tightening Machine is equipped with 3 independent stations, and compared with a single-station system, it can increase production efficiency by up to three times. Each station operates independently, ensuring a continuous production process.
It is widely used in industries requiring high-volume, high-precision screw fastening, such as electronics, automotive, and hardware manufacturing. It is particularly suitable for assembly lines of digital devices, lighting equipment, and toys.
It is widely used in industries requiring high-volume, high-precision screw fastening, such as electronics, automotive, and hardware manufacturing. It is particularly suitable for assembly lines of digital devices, lighting equipment, and toys.
| Models | XH-AS373-T |
|---|---|
| Working area X*Y*Z(mm) | X1/X2:330*Y1/Y2:700*Z1/Z2:100mm |
| Moving speed | X/Y axis ≤ 500mm/s, Z axis ≤ 300mm/s |
| Drive mode | Stepper motor linear guide or servo motor ball screw (optional) |
| Location accuracy | ±0.01~0.03mm |
| Control system | Moving controlling and teach pendant |
| Screw transmission method | Suction mode/blow mode (alternative) |
| Electric screwdriver | 3 pcs (alternative) |
| Screw feeder | 3 pcs |
| Full voltage | 220V 50HZ |
| Operating temperature | 5-40°C |
| Operating humidity | 20-90% no condensation |
| Air pressure | 0-0.8MPa |
| Dimension W*D*H(mm) | 1235*1080*780 |
| Weight | Approx. 420kg |
