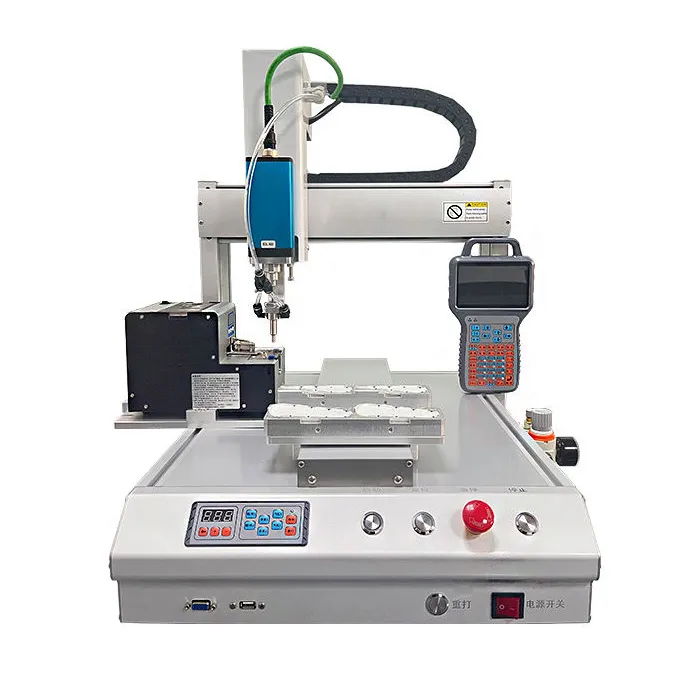

3 Axis Automatic Screw Assembly Machine

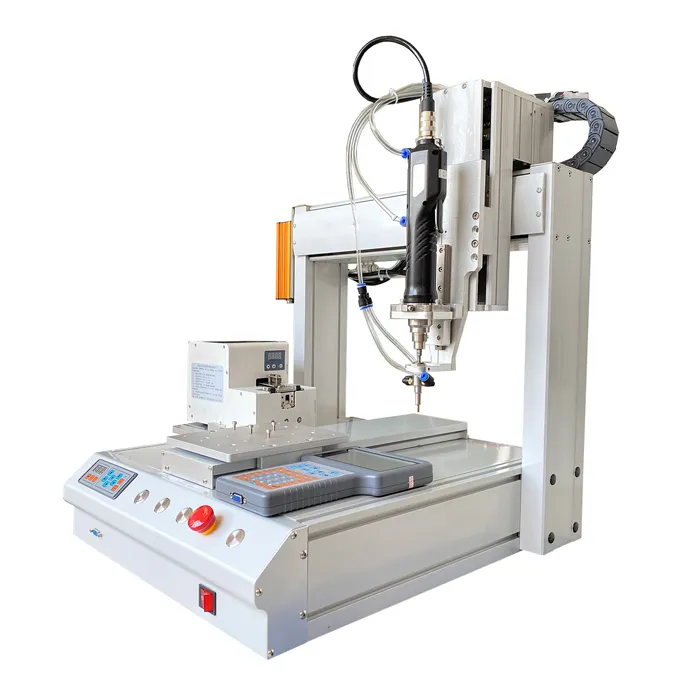

3-Axis Automatic Screw Assembly Machine XH-300SC/400SC
The 3-axis automatic screw assembly machine has a large stroke, strong compatibility, high efficiency, and can be equipped with dual feeders to drive two types of screws at the same time.
The screw picking method can support vacuum suction or magnetic suction.
Sheet metal frame, strong rigidity. The height of the feeder can be adjusted freely, supporting products of different heights, and strong compatibility.
High-definition teaching box display, full-featured, easy to learn and use.

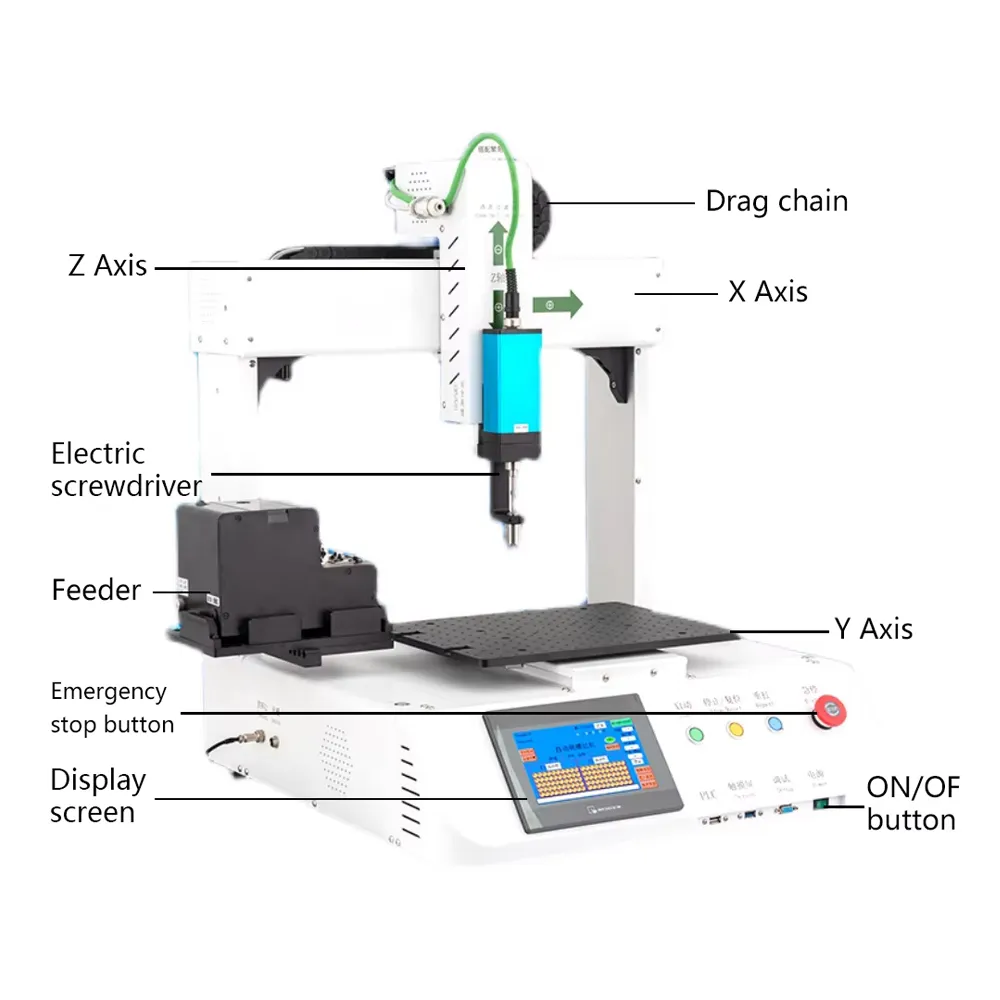

3-axis single platform, small machine size, flexible and universal, does not occupy production line space.
This auto screw assembly machine is used for locking screws applied in electronics, household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency.
The screw picking method can support vacuum suction or magnetic suction.
Sheet metal frame, strong rigidity. The height of the feeder can be adjusted freely, supporting products of different heights, and strong compatibility.
High-definition teaching box display, full-featured, easy to learn and use.
3-axis single platform, small machine size, flexible and universal, does not occupy production line space.
This auto screw assembly machine is used for locking screws applied in electronics, household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency.
| Models | XH-300SC | XH-400SC |
|---|---|---|
| Working area (X*Y*Z mm) | 300*300*120 | 400*400*120 |
| Moving speed (mm/s) | X,Y: ≤ 500mm/s; Z: ≤ 200mm/s | X,Y: ≤ 500mm/s; Z: ≤ 200mm/s |
| Drive mode | Stepper motor (standard) / optional straight guide rail servo motor + ball screw | |
| Location accuracy | ±0.01–0.03mm | ±0.01–0.03mm |
| Control system | Motion control + Teach pendant | |
| Screw transmission method | Suction / Blowing (optional) | |
| Electric screwdriver | 1 pc (more can be added) | 1 pc (more can be added) |
| Full voltage | 220V 50HZ | |
| Operating temperature | 5–40°C | |
| Operating humidity | 20–90% no condensation | |
| Air pressure | 0–0.8MPa | |
| Machine size (W*D*H mm) | 485*545*600 | 565*605*620 |
| Weight | Approx. 70kg | Approx. 90kg |
